FRONT CRANKSHAFT OIL SEAL REMOVAL

PROCEDURE


  1. REMOVE FRONT WHEEL RH

  2. REMOVE ENGINE UNDER COVER RH

  3. REMOVE FAN AND GENERATOR V BELT

    Click here

  4. REMOVE OIL FILTER BRACKET

    Click here

  5. REMOVE CRANKSHAFT PULLEY

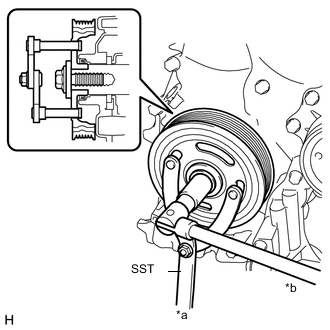

    1. A01VE1HE03
      Text in Illustration
      *a Hold
      *b Turn

      Using SST, hold the crankshaft pulley and remove the crankshaft bolt.

      SST
      09960-10010   ( 09962-01000, 09963-01000 )

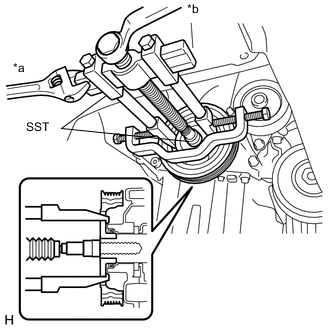

    2. A01VI0UE01
      Text in Illustration
      *a Hold
      *b Turn

      Using SST, remove the crankshaft pulley.

      SST
      09950-40011   ( 09951-04010, 09953-04030, 09958-04011, 09955-04011, 09952-04010, 09954-04020, 09957-04010 )
      09950-60010   ( 09952-06010, 09951-00420, 09951-00430 )

  6. REMOVE TIMING CHAIN COVER OIL SEAL

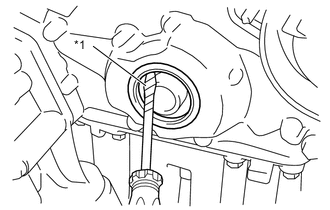

    A01VIQAE03
    Text in Illustration
    *1 Protective Tape

    1. Using a knife, cut off the oil seal lip.

    2. Using a screwdriver with its tip wrapped in protective tape, remove the oil seal.

      Note

      After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
