BRAKE ACTUATOR(for TMMF Made LHD) COMPONENTS
ILLUSTRATION

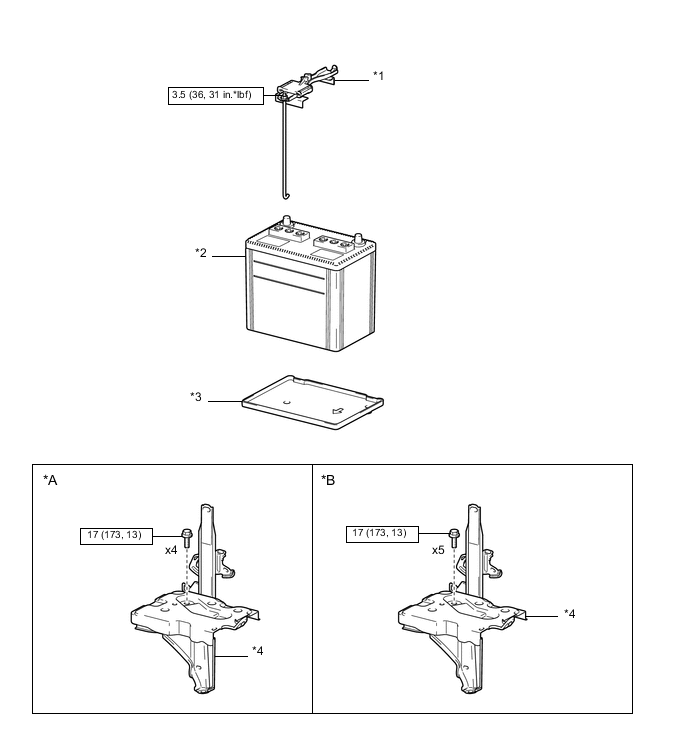

| *A | for 1KR-FE | *B | for 2NR-FKE, 2ZR-FE, 1ND-TV |
| *1 | BATTERY CLAMP | *2 | BATTERY |
| *3 | BATTERY TRAY | *4 | BATTERY CARRIER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION

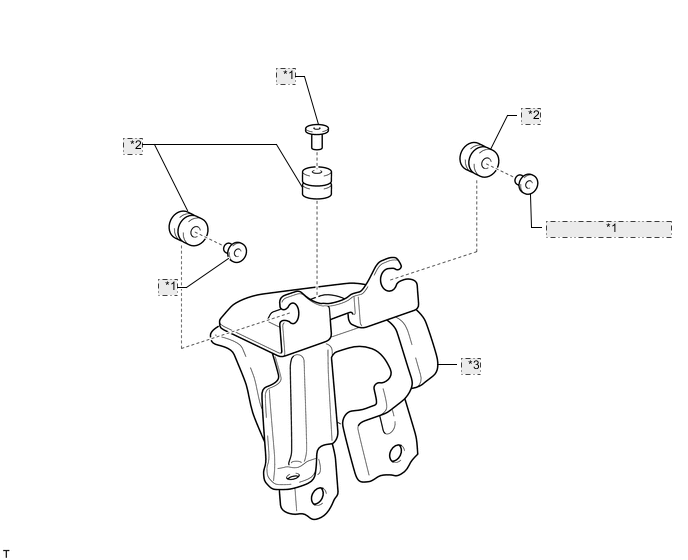

| *1 | BRAKE ACTUATOR CASE COLLAR |
| *2 | BRAKE ACTUATOR BOLT CUSHION |
| *3 | BRAKE ACTUATOR BRACKET ASSEMBLY |
