BRAKE ACTUATOR(for TMMF Made LHD) COMPONENTS

ILLUSTRATION

A01VEMME02

ILLUSTRATION

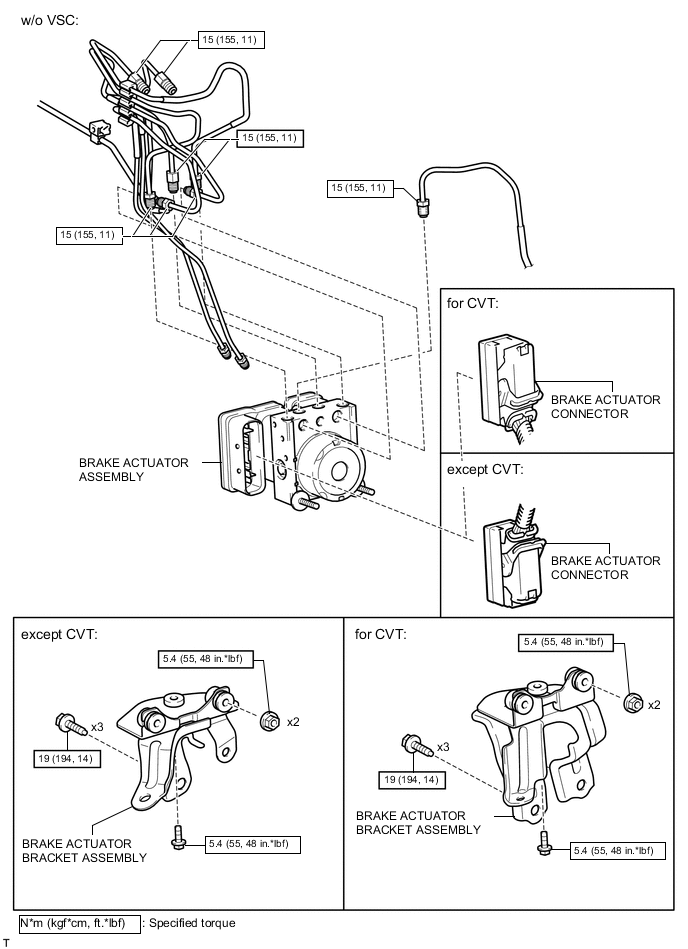

A01VKKJE02

ILLUSTRATION

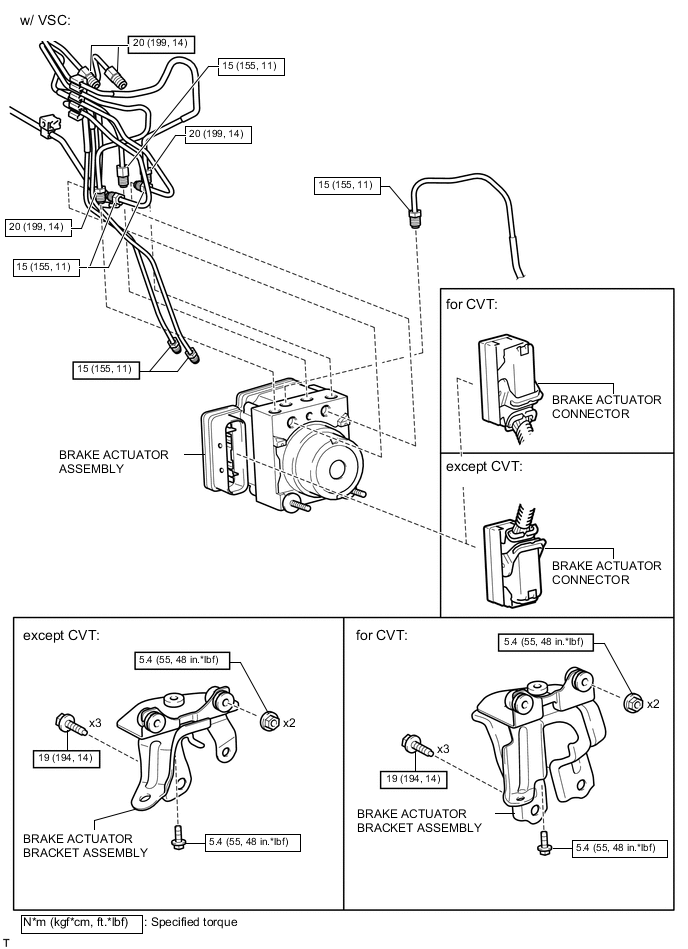

A01VEB6E02

ILLUSTRATION

A01VHVFE02
*1 BRAKE ACTUATOR CASE COLLAR
*2 BRAKE ACTUATOR BOLT CUSHION
*3 BRAKE ACTUATOR BRACKET ASSEMBLY
