VEHICLE APPROACHING SPEAKER SWITCH INSPECTION

PROCEDURE

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY




   1. Remove the integration control and panel assembly (vehicle approaching speaker switch).

      Click here

   2. Check the resistance.

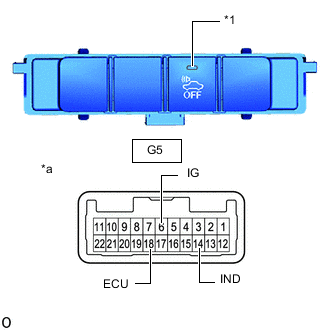

      1.

         *1	Indicator
         *a	Component without harness connected (Integration Control and Panel Assembly (Vehicle Approaching Speaker Switch))

         Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Switch Condition Specified Condition G5-6(IG) - G5-18(ECU) Switch off 10 kΩ or higher G5-6(IG) - G5-18(ECU) Switch on Below 1 Ω

         Tech Tips

         If the result is not as specified, replace the integration control and panel assembly (vehicle approaching speaker switch).

   3. Inspect the indicator operation.




      1. Apply auxiliary battery voltage to the vehicle approaching speaker switch connector, and check that the vehicle approaching speaker switch indicator illuminates.

         OK
         Tester Connection Specified Condition G5-6(IG) - Auxiliary battery positive (+) G5-14(IND) - Auxiliary battery positive (-) LED illuminates

         Tech Tips

         If the result is not as specified, replace the integration control and panel assembly (vehicle approaching speaker switch).

   4. Inspect the illumination operation.

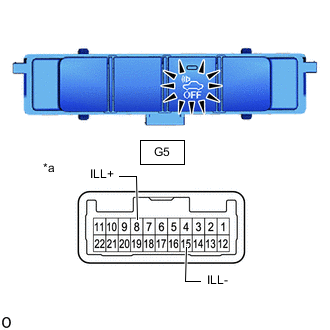

      1.

         *a	Component without harness connected (Integration Control and Panel Assembly (Vehicle Approaching Speaker Switch))

         Apply auxiliary battery voltage to the vehicle approaching speaker switch connector, and check that the vehicle approaching speaker switch LED illuminates.

         OK
         Tester Connection Specified Condition G5-8(ILL+) - Auxiliary battery positive (+) G5-15(ILL-) - Auxiliary battery negative (-) LED illuminates

         Tech Tips

         If the result is not as specified, replace the integration control and panel assembly (vehicle approaching speaker switch).

   5. Install the integration control and panel assembly (vehicle approaching speaker switch).

      Click here
