LIGHTING SYSTEM SYSTEM DIAGRAM

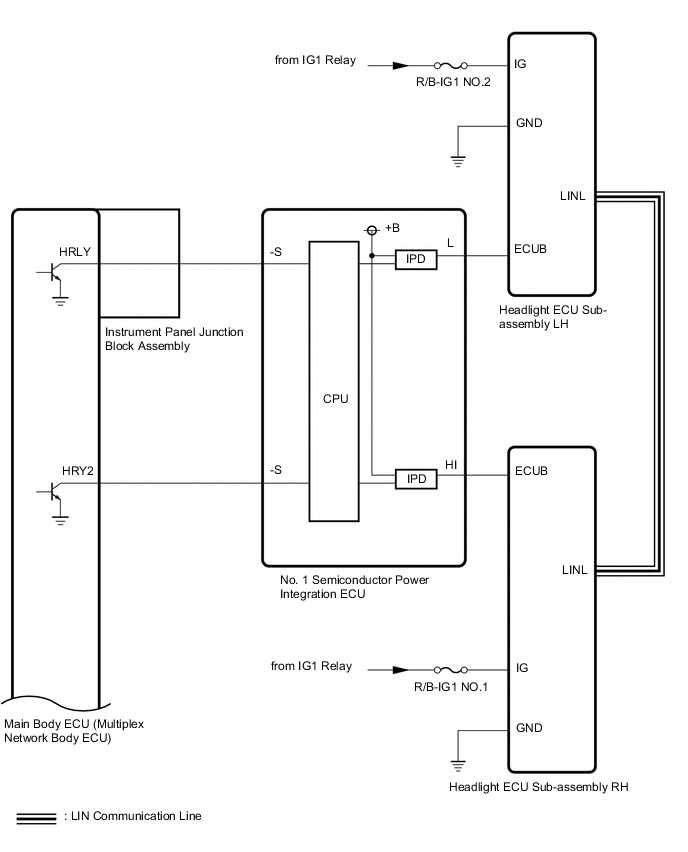

  1. Headlight

    B004VURN01

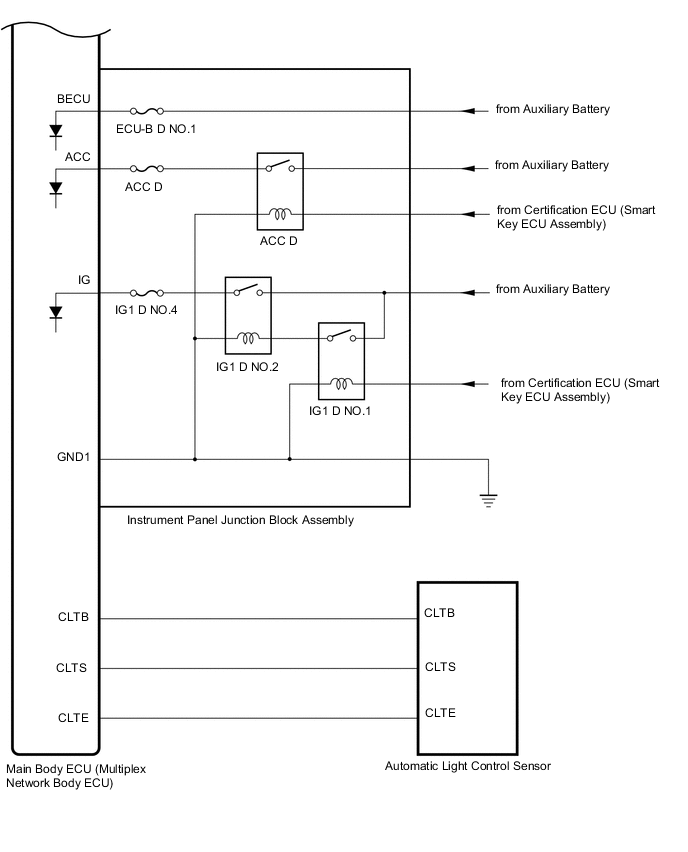

    B004WU9E04

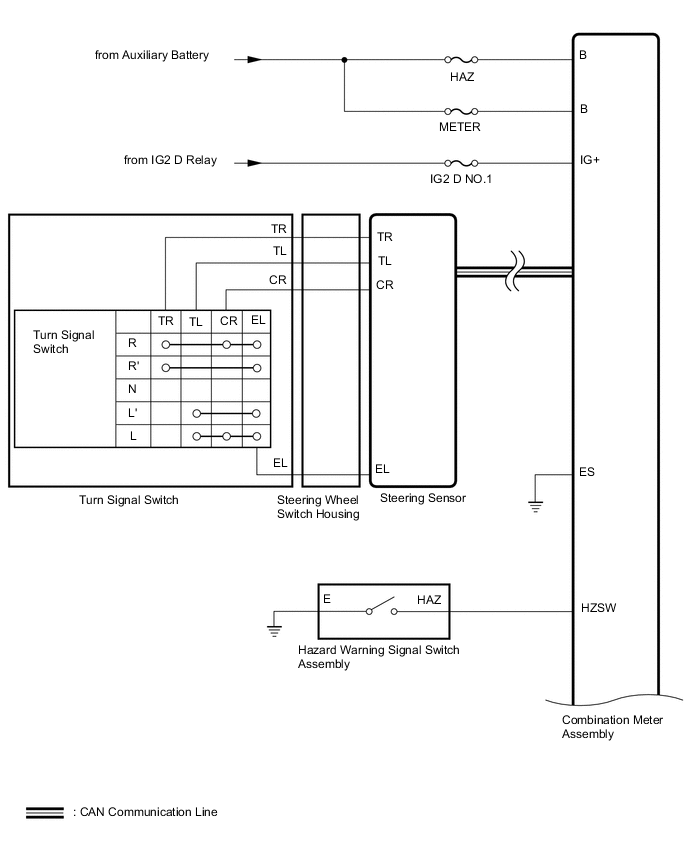

  2. Turn Signal Light, Hazard Warning Light

    B004R9FE06

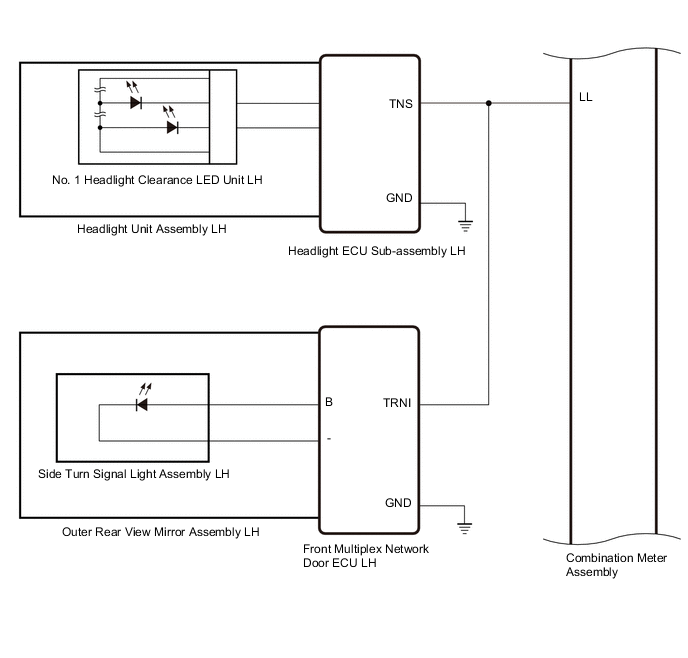

    B004Y3WE04
    B004Y3WE03

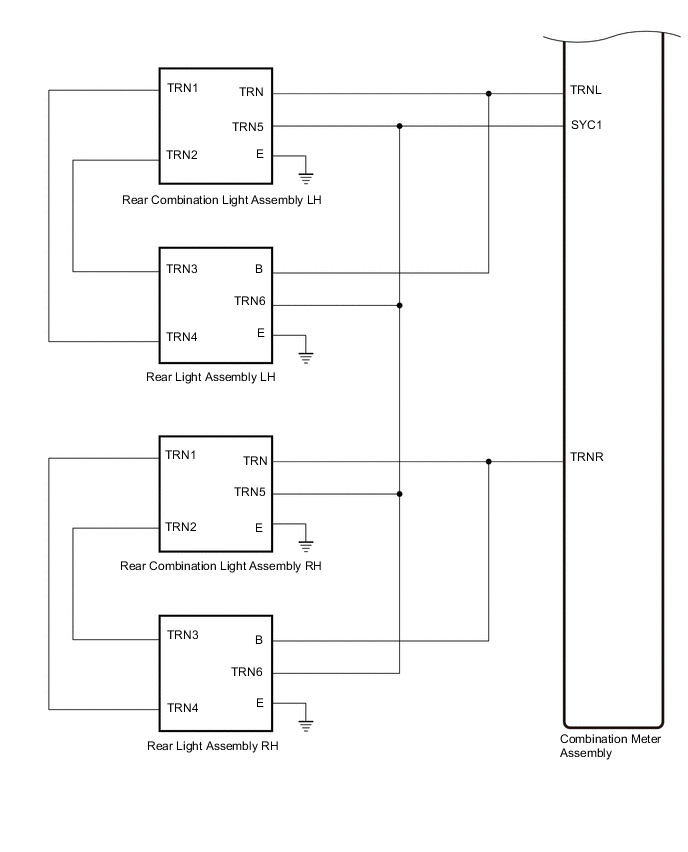

    B004X2VE01

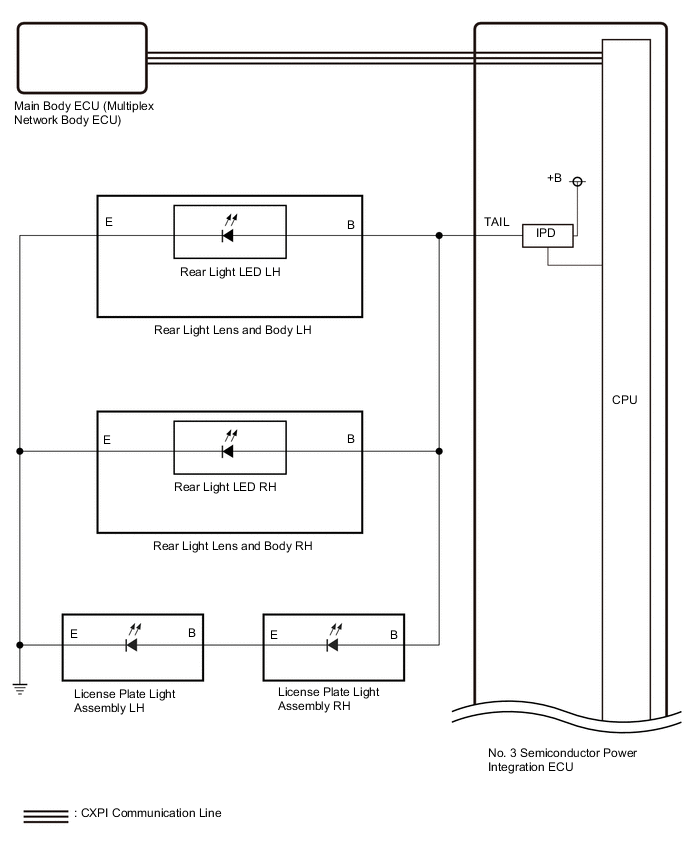

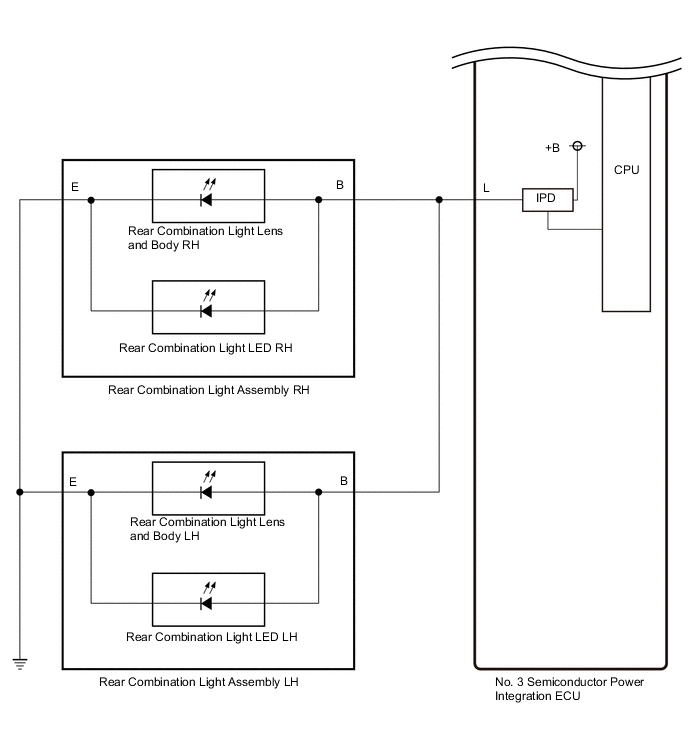

  3. Taillight, License Plate Light

    B004SSBE02
    B004YISE03

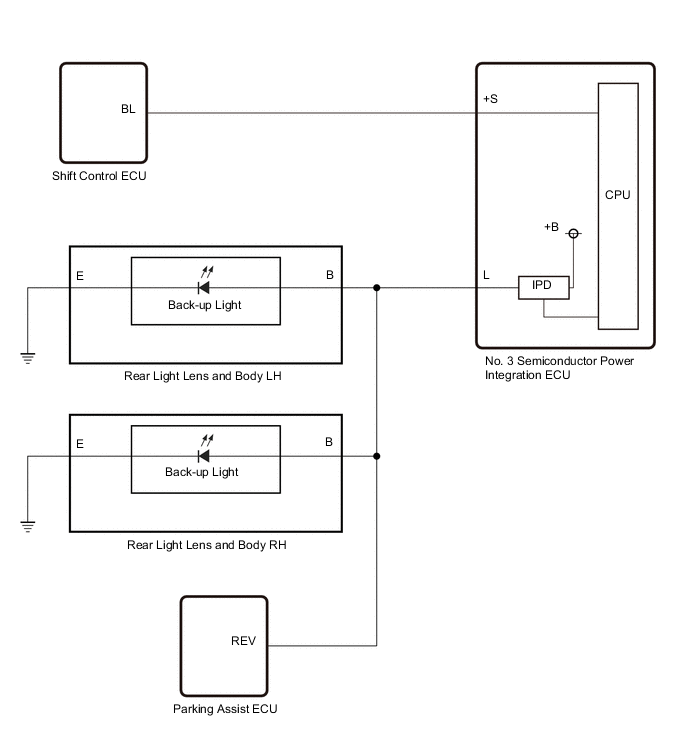

  4. Back-up Light

    B004XMKE02

  5. Stop Light

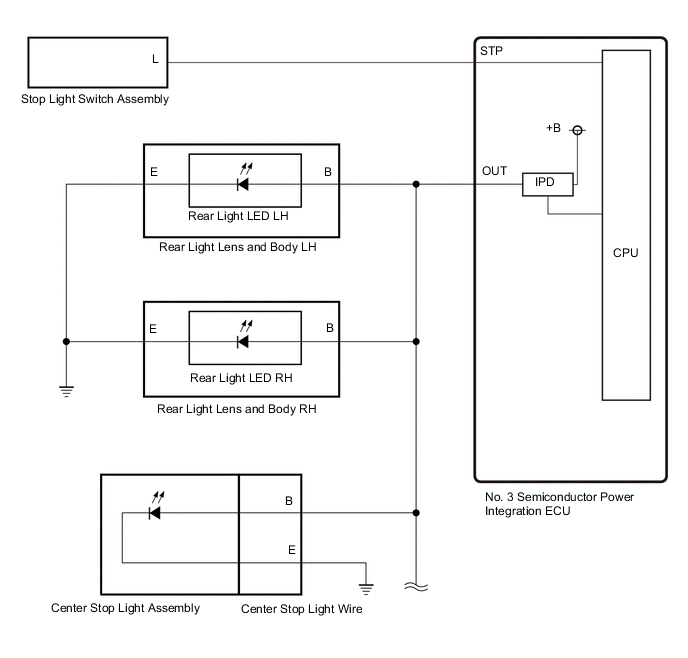

    B004XZ0E01

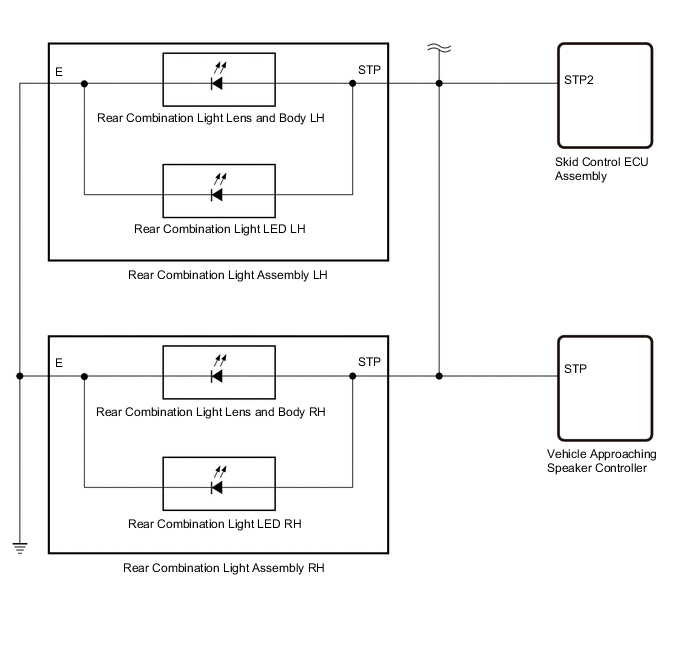

    B004R8UE02

  6. Turn Signal Switch

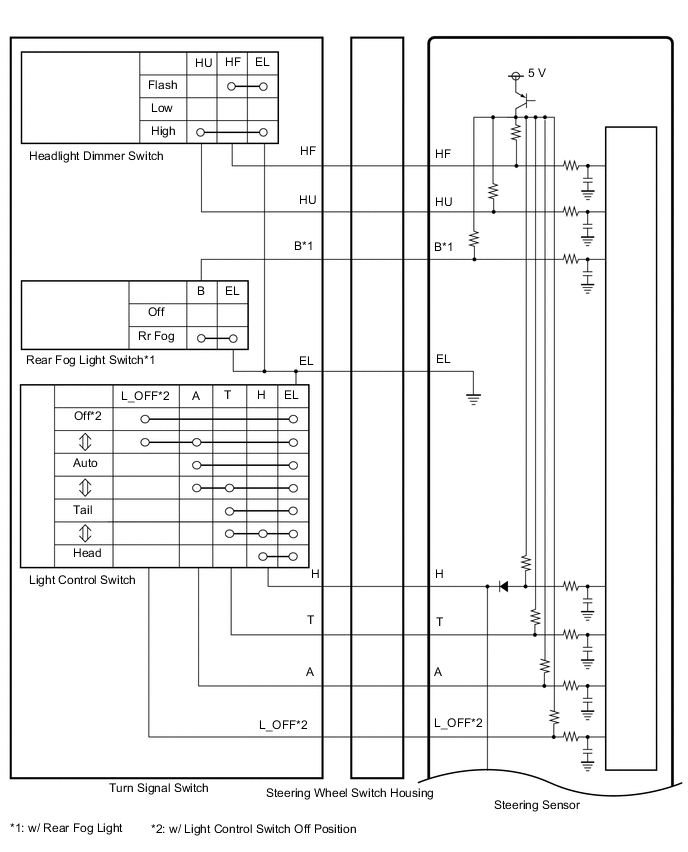

    B004XVOE02

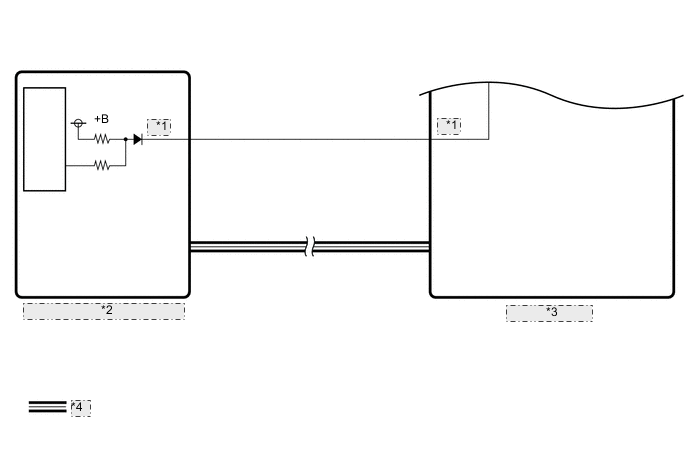

    B004TSBE01
    *1 HEAD
    *2 Main Body ECU (Multiplex Network Body ECU)
    *3 Steering Sensor
    *4 CAN Communication Line

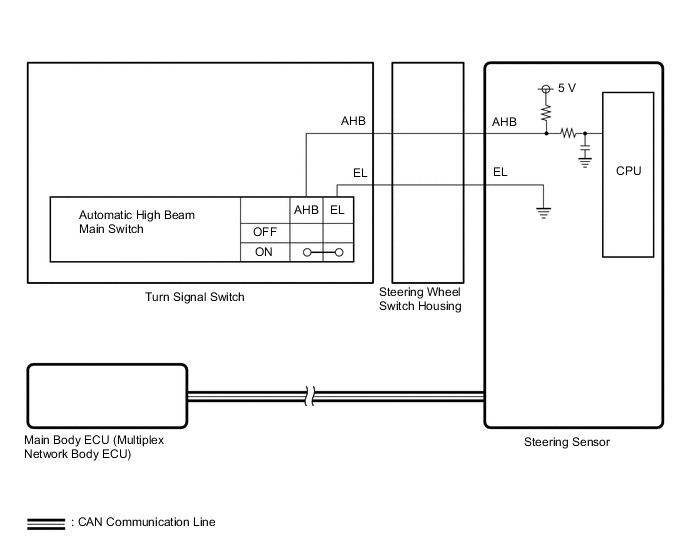

  7. Automatic High Beam Main Switch

    B004YVBE01

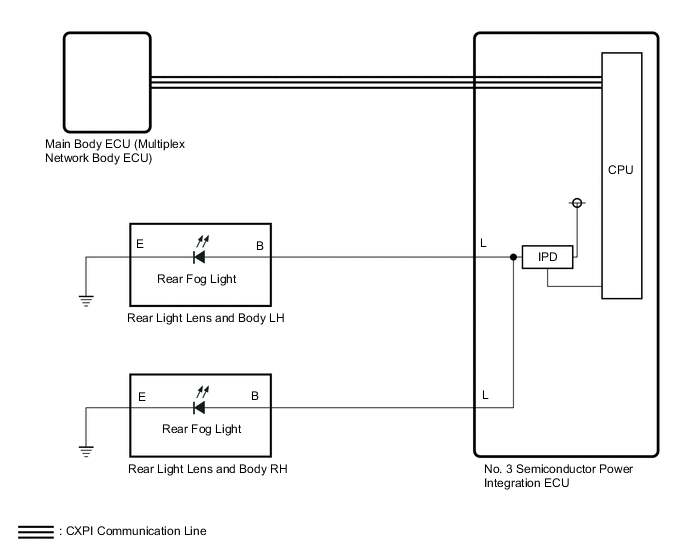

  8. Rear Fog Light (w/ Rear Fog Light)

    B004V8TE02

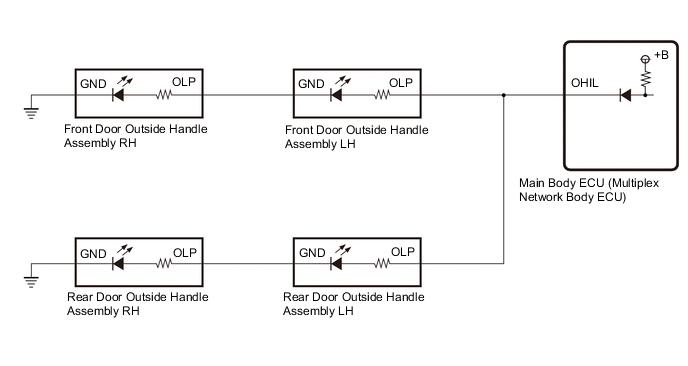

  9. Outside Handle Lights

    B004XLLE02
