REGISTER ILLUMINATION(for Center) INSTALLATION

Click here
Click here

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

Click here

PROCEDURE


  1. Click here

    INSTALL NO. 3 INSTRUMENT PANEL WIRE


    1. B004YTK

      Attach the hook to install the No. 3 instrument panel wire.

    2. Connect the 2 connectors.

  2. Click here

    INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

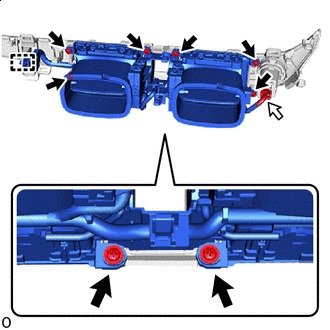

    1. B004Y7WC02
      B004SZX Screw
      B004UK4 Connector

      Attach the clamp and connect the connector.

    2. Install the center instrument panel register assembly with the 8 screws.

  3. Click here

    INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Click here
