REGISTER ILLUMINATION(for Center) REMOVAL

Click here
Click here

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

Click here

PROCEDURE


  1. Click here

    REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Click here

  2. Click here

    REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

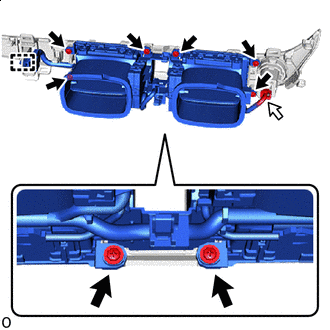

    1. B004Y7WC01
      B004SZX Screw
      B004UK4 Connector

      Remove the 8 screws.

    2. Disconnect the connector.

    3. Detach the clamp and remove the center instrument panel register assembly.

  3. Click here

    REMOVE NO. 3 INSTRUMENT PANEL WIRE

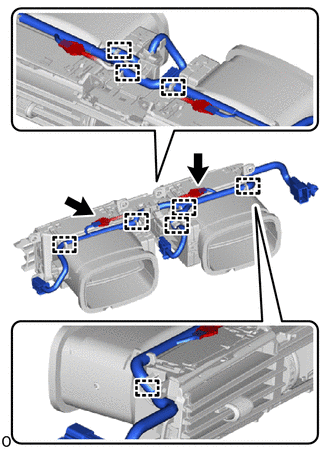

    1. B004YTK

      Disconnect the 2 connectors.

    2. Detach the hook and remove the No. 3 instrument panel wire.
