REGISTER ILLUMINATION(for Driver Side) COMPONENTS
ILLUSTRATION
| *1 | NEGATIVE AUXILIARY BATTERY TERMINAL | *2 | NO. 2 DECK BOARD |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

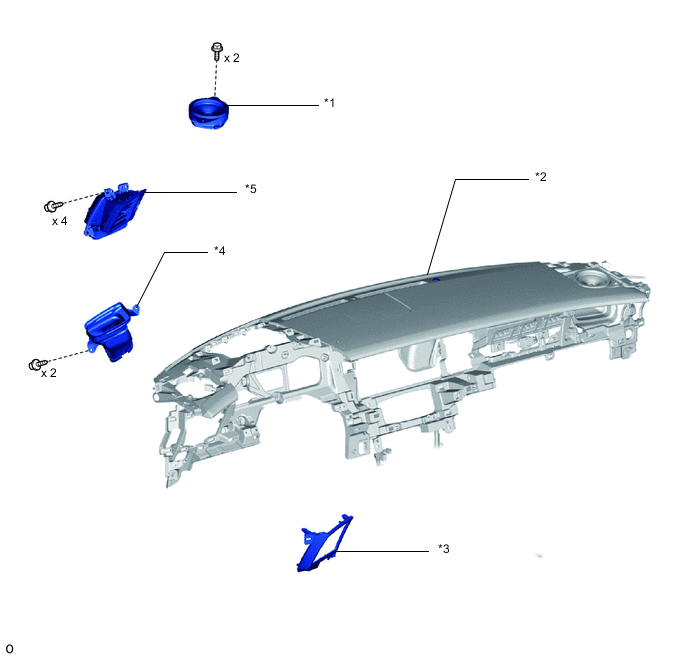

ILLUSTRATION
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY | *2 | INSTRUMENT PANEL ASSEMBLY |
| *3 | INSTRUMENT PANEL REGISTER BEZEL | *4 | NO. 1 HEATER TO REGISTER DUCT |
| *5 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | - | - |
