REGISTER ILLUMINATION(for Center) INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. INSTALL INSTRUMENT PANEL CENTER REGISTER ASSEMBLY

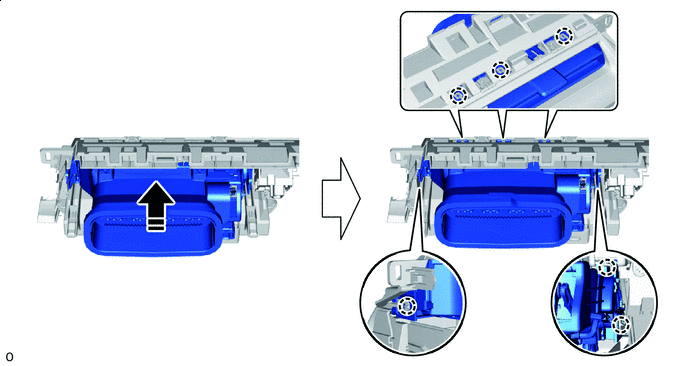

    1. Attach the claw to install the instrument panel center register assembly to the integration control and panel assembly.

      B000T1CC01
      B004B1M Install in this Direction - -

  2. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
