RADIATOR COMPONENTS

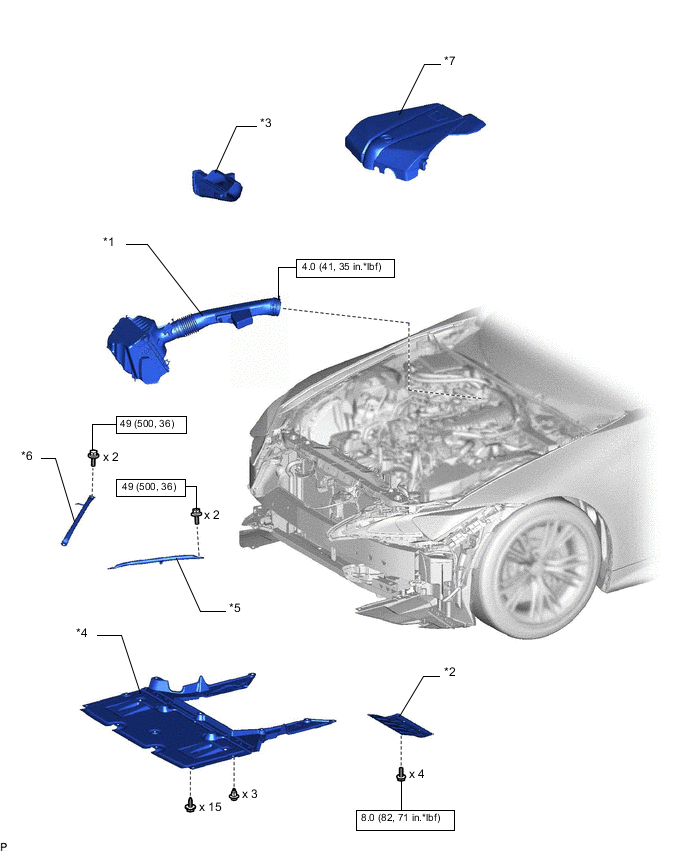

ILLUSTRATION
| *1 | AIR CLEANER WITH AIR CLEANER HOSE | *2 | ENGINE UNDER COVER REINFORCEMENT |
| *3 | NO. 1 AIR CLEANER INLET | *4 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *5 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH | *6 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH |
| *7 | V-BANK COVER SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

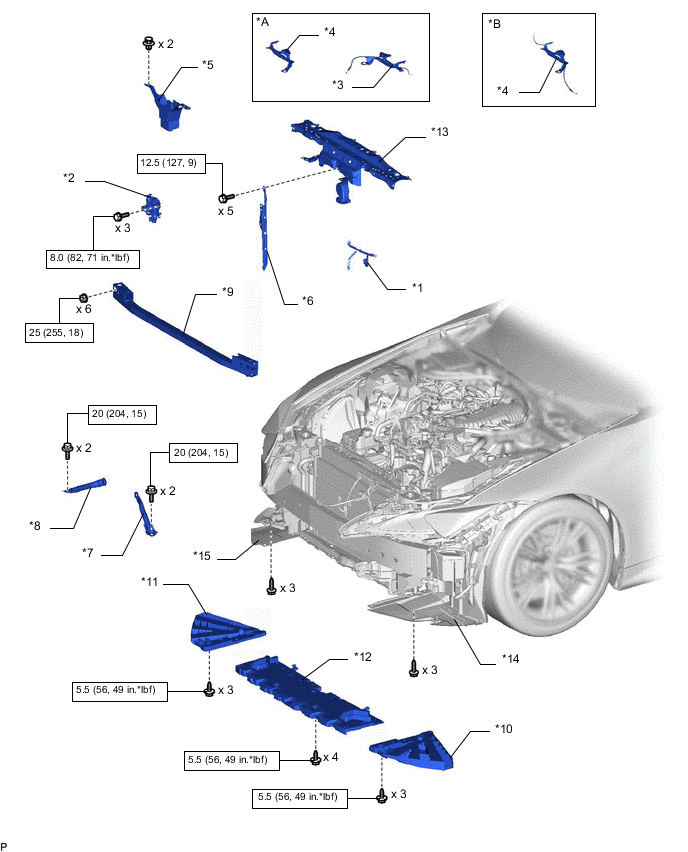

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *1 | ENGINE ROOM MAIN WIRE | *2 | HOOD LOCK ASSEMBLY |
| *3 | HOOD LOCK CONTROL CABLE COVER LH | *4 | HOOD LOCK CONTROL CABLE COVER RH |
| *5 | HOOD LOCK RELEASE LEVER PROTECTOR | *6 | HOOD LOCK SUPPORT BRACE |
| *7 | LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH | *8 | LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH |
| *9 | NO. 2 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY | *10 | RADIATOR SUPPORT EXTENSION LH |
| *11 | RADIATOR SUPPORT EXTENSION RH | *12 | RADIATOR SUPPORT OPENING COVER |
| *13 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | *14 | FRONT FENDER LINER LH |
| *15 | FRONT FENDER LINER RH | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

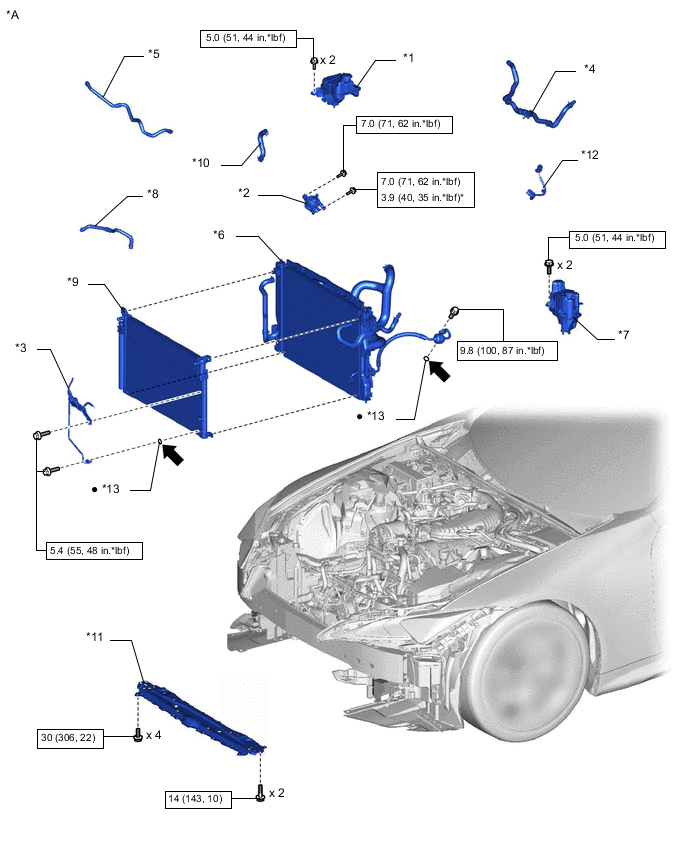

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | INVERTER RESERVE TANK ASSEMBLY | *2 | INVERTER WATER PUMP ASSEMBLY WITH MOTOR |
| *3 | NO. 1 RADIATOR HOSE | *4 | NO. 2 OIL COOLER OUTLET HOSE |
| *5 | NO. 6 INVERTER COOLING HOSE | *6 | RADIATOR ASSEMBLY |
| *7 | RADIATOR RESERVE TANK ASSEMBLY | *8 | TRANSMISSION OIL COOLER HOSE |
| *9 | COOLER CONDENSER ASSEMBLY | *10 | NO. 1 INVERTER COOLING HOSE |
| *11 | FRONT CROSSMEMBER SUB-ASSEMBLY | *12 | CONNECTOR |
| *13 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
| ● | Non-reusable part |  |
Compressor oil ND-OIL 11 or equivalent |

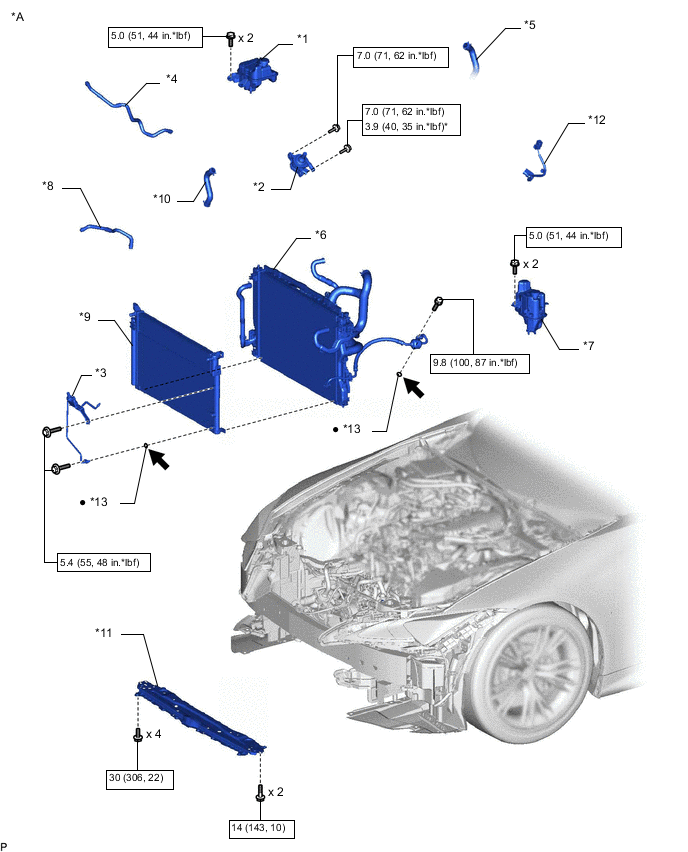

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | INVERTER RESERVE TANK ASSEMBLY | *2 | INVERTER WATER PUMP ASSEMBLY WITH MOTOR |
| *3 | LIQUID TUBE SUB-ASSEMBLY A | *4 | NO. 2 INVERTER COOLING HOSE ASSEMBLY |
| *5 | NO. 2 OIL COOLER OUTLET HOSE | *6 | RADIATOR ASSEMBLY |
| *7 | RADIATOR RESERVE TANK ASSEMBLY | *8 | TRANSMISSION OIL COOLER HOSE |
| *9 | COOLER CONDENSOR ASSEMBLY | *10 | NO. 1 INVERTER COOLING HOSE |
| *11 | FRONT CROSSMEMBER SUB-ASSEMBLY | *12 | CONNECTOR |
| *13 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
| ● | Non-reusable part | |
Compressor oil ND-OIL 11 or equivalent |

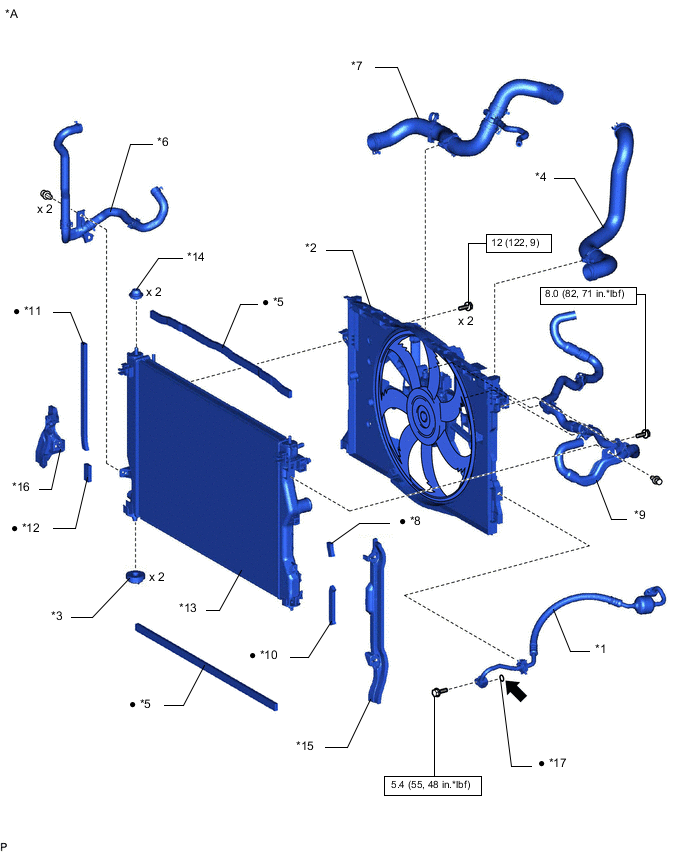

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | DISCHARGE HOSE SUB-ASSEMBLY | *2 | FAN WITH MOTOR ASSEMBLY |
| *3 | LOWER RADIATOR SUPPORT | *4 | NO. 1 RADIATOR HOSE |
| *5 | NO. 1 RADIATOR TO SUPPORT SEAL | *6 | NO. 2 INVERTER COOLING HOSE |
| *7 | NO. 2 RADIATOR HOSE | *8 | NO. 2 RADIATOR TO SUPPORT SEAL |
| *9 | NO. 3 INVERTER COOLING HOSE | *10 | NO. 3 RADIATOR TO SUPPORT SEAL |
| *11 | NO. 4 RADIATOR TO SUPPORT SEAL | *12 | NO. 5 RADIATOR TO SUPPORT SEAL |
| *13 | RADIATOR ASSEMBLY | *14 | RADIATOR SUPPORT CUSHION |
| *15 | REAR RADIATOR SIDE AIR GUIDE PLATE LH | *16 | REAR RADIATOR SIDE AIR GUIDE PLATE RH |
| *17 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 11 or equivalent | - | - |

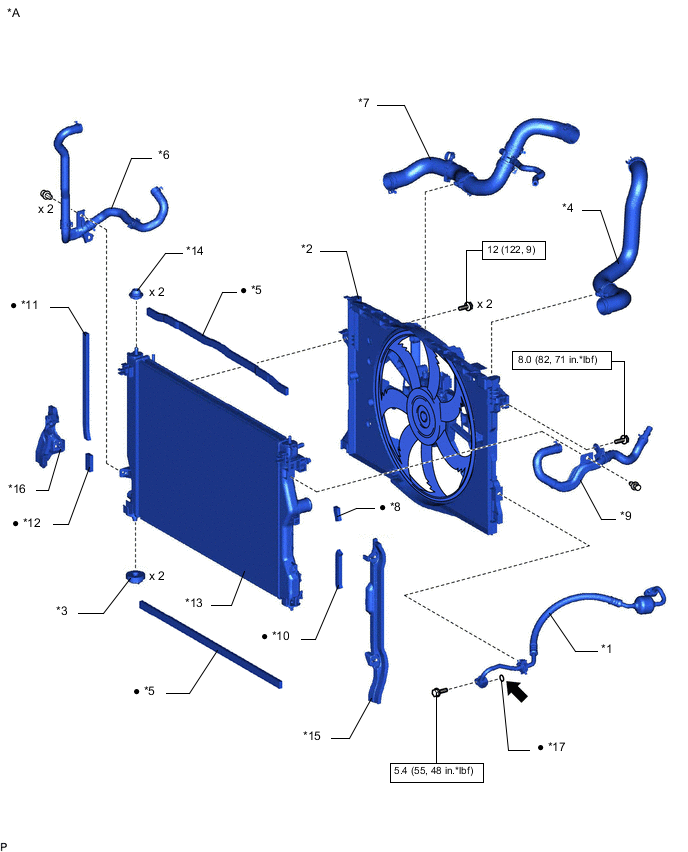

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | DISCHARGE HOSE SUB-ASSEMBLY | *2 | FAN WITH MOTOR ASSEMBLY |
| *3 | LOWER RADIATOR SUPPORT | *4 | NO. 1 RADIATOR HOSE |
| *5 | NO. 1 RADIATOR TO SUPPORT SEAL | *6 | NO. 2 INVERTER COOLING HOSE |
| *7 | NO. 2 RADIATOR HOSE | *8 | NO. 2 RADIATOR TO SUPPORT SEAL |
| *9 | NO. 3 INVERTER COOLING HOSE | *10 | NO. 3 RADIATOR TO SUPPORT SEAL |
| *11 | NO. 4 RADIATOR TO SUPPORT SEAL | *12 | NO. 5 RADIATOR TO SUPPORT SEAL |
| *13 | RADIATOR ASSEMBLY | *14 | RADIATOR SUPPORT CUSHION |
| *15 | REAR RADIATOR SIDE AIR GUIDE PLATE LH | *16 | REAR RADIATOR SIDE AIR GUIDE PLATE RH |
| *17 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 11 or equivalent | - | - |
