POWER OUTLET SOCKET INSTALLATION

PROCEDURE


  1. INSTALL NO. 1 POWER OUTLET SOCKET COVER


    1. B000X73C01
      B000WYJ Install in this Direction

      Attach the claw to install the No. 1 power outlet socket cover as shown in the illustration.

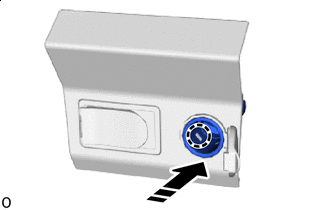

  2. INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY


    1. B000U35C01
      B000WYJ Install in this Direction

      Attach the claw to install the No. 1 power outlet socket assembly as shown in the illustration.

  3. INSTALL EQUIPMENT SET PANEL

    Click here
