POWER OUTLET SOCKET REMOVAL

PROCEDURE


  1. REMOVE EQUIPMENT SET PANEL

    Click here

  2. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

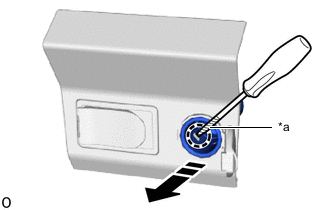

    1. B000WAYC01
      *a Protective Tape
      B000WYJ Remove in this Direction

      Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.

  3. REMOVE NO. 1 POWER OUTLET SOCKET COVER


    1. B000UHUC01
      B000WYJ Remove in this Direction

      Detach the claw and remove the No. 1 power outlet socket cover as shown in the illustration.
