TELEMATICS SYSTEM PARTS LOCATION

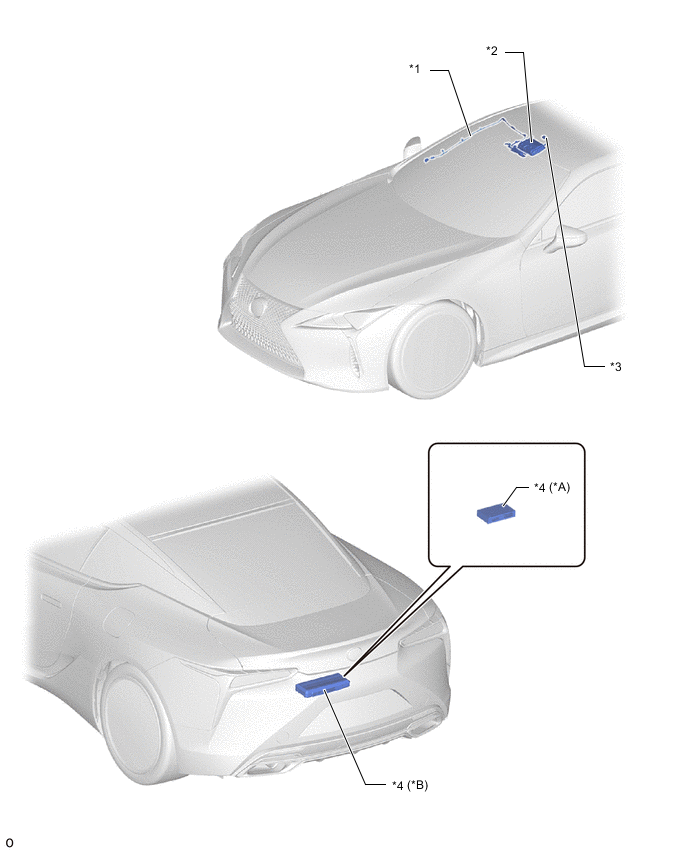

ILLUSTRATION
| *A | for 12 Speakers | *B | for 13 Speakers |
| *1 | TELEPHONE ANTENNA ASSEMBLY | *2 | MAP LIGHT SUB-ASSEMBLY - MANUAL (SOS) SWITCH |
| *3 | TELEPHONE MICROPHONE ASSEMBLY | *4 | STEREO COMPONENT AMPLIFIER ASSEMBLY |

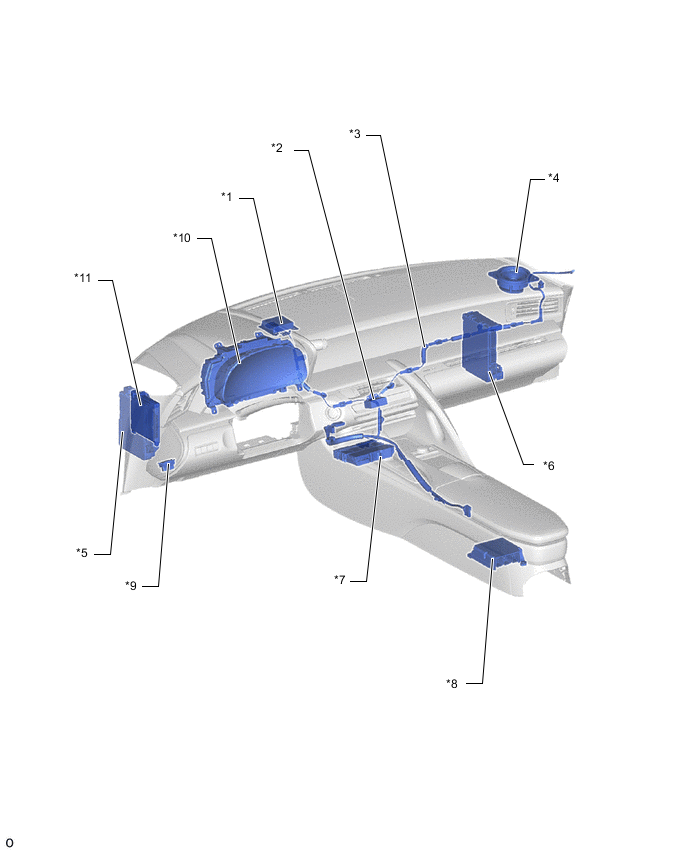

ILLUSTRATION
| *1 | NAVIGATION ANTENNA ASSEMBLY | *2 | ANTENNA DIVIDER |
| *3 | ANTENNA CORD SUB-ASSEMBLY | *4 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *5 | DRIVER SIDE JUNCTION BLOCK ASSEMBLY - ACC D FUSE |
*6 | PASSENGER SIDE JUNCTION BLOCK ASSEMBLY - DCM FUSE - IG2 P NO.3 FUSE |
| *7 | TELEPHONE TRANSCEIVER ASSEMBLY | *8 | AIRBAG ECU ASSEMBLY |
| *9 | DLC3 | *10 | COMBINATION METER ASSEMBLY |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | - | - |
