NAVIGATION SYSTEM PARTS LOCATION

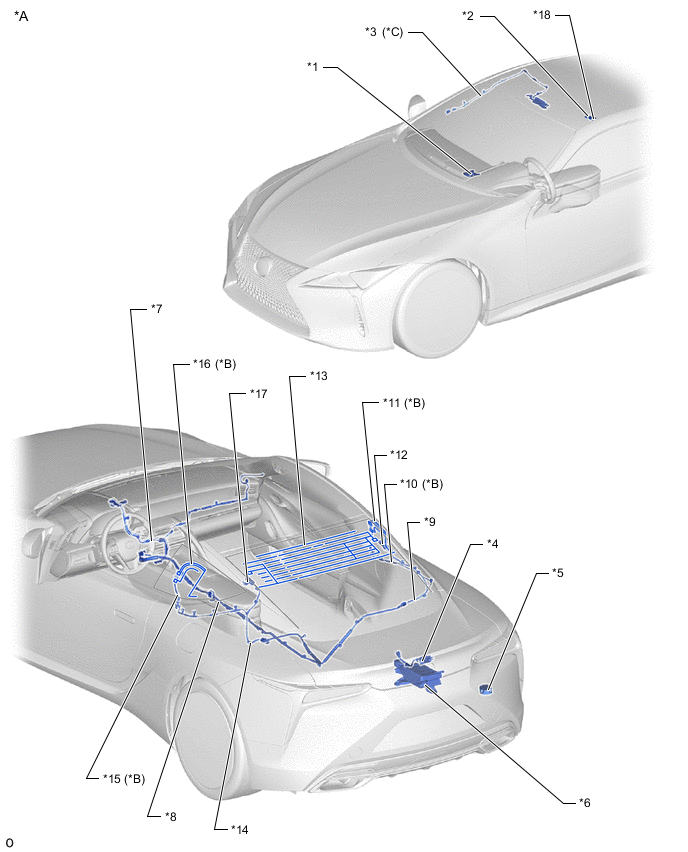

ILLUSTRATION
| *A | for LHD | *B | w/ DAB Function |
| *C | w/ Telematics Transceiver | - | - |
| *1 | NAVIGATION ANTENNA ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | TELEPHONE ANTENNA ASSEMBLY | *4 | TELEVISION CAMERA ASSEMBLY |
| *5 | STEREO COMPONENT EQUALIZER ASSEMBLY | *6 | NO. 1 LUGGAGE ROOM RELAY BLOCK - AMP NO.1 FUSE - AMP NO.2 FUSE |
| *7 | ANTENNA CORD SUB-ASSEMBLY | *8 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *9 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | *10 | NO. 5 ANTENNA CORD SUB-ASSEMBLY RH |
| *11 | QUARTER WINDOW ASSEMBLY RH (WINDOW GLASS ANTENNA WIRE) | *12 | ANTENNA WITH HOLDER ASSEMBLY RH |
| *13 | BACK WINDOW GLASS (WINDOW GLASS ANTENNA WIRE) | *14 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
| *15 | NO. 5 ANTENNA CORD SUB-ASSEMBLY LH | *16 | QUARTER WINDOW ASSEMBLY LH (WINDOW GLASS ANTENNA WIRE) |
| *17 | ANTENNA WITH HOLDER ASSEMBLY LH | *18 | ROOF HEADLINING HOLDER COVER |
ILLUSTRATION
| *A | for RHD | *B | w/ DAB Function |
| *1 | NAVIGATION ANTENNA ASSEMBLY | *2 | TELEPHONE MICROPHONE ASSEMBLY |
| *3 | ROOF HEADLINING HOLDER COVER | *4 | TELEVISION CAMERA ASSEMBLY |
| *5 | STEREO COMPONENT EQUALIZER ASSEMBLY | *6 | NO. 1 LUGGAGE ROOM RELAY BLOCK - AMP NO.1 FUSE - AMP NO.2 FUSE |
| *7 | ANTENNA CORD SUB-ASSEMBLY | *8 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *9 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | *10 | NO. 5 ANTENNA CORD SUB-ASSEMBLY RH |
| *11 | QUARTER WINDOW ASSEMBLY RH (WINDOW GLASS ANTENNA WIRE) | *12 | ANTENNA WITH HOLDER ASSEMBLY RH |
| *13 | BACK WINDOW GLASS (WINDOW GLASS ANTENNA WIRE) | *14 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
| *15 | NO. 5 ANTENNA CORD SUB-ASSEMBLY LH | *16 | QUARTER WINDOW ASSEMBLY LH (WINDOW GLASS ANTENNA WIRE) |
| *17 | ANTENNA WITH HOLDER ASSEMBLY LH | - | - |

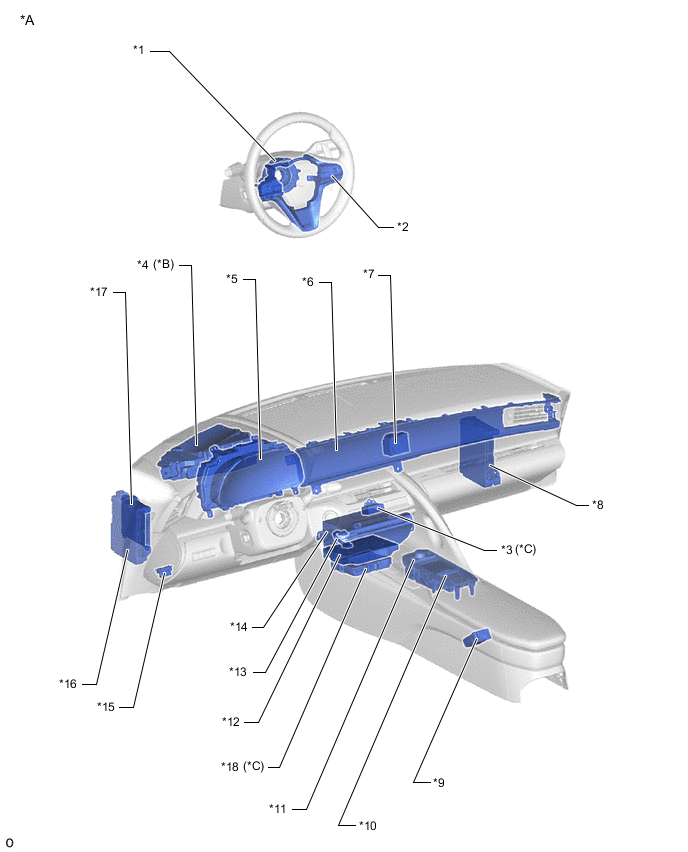

ILLUSTRATION
| *A | for LHD | *B | w/ Headup Display |
| *C | w/ Telematics Transceiver | - | - |
| *1 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | ANTENNA DIVIDER | *4 | METER MIRROR SUB-ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | MULTI-DISPLAY |
| *7 | CLOCK ASSEMBLY | *8 | PASSENGER SIDE JUNCTION BLOCK ASSEMBLY - MPX-B P NO.1 FUSE (w/ Headup Display) - DCM FUSE (w/ Telematics Transceiver) - IG2 P NO.3 FUSE (w/ Telematics Transceiver) - ACC P NO.1 FUSE - IG1 P NO.1 FUSE - RADIO NO.1 FUSE - RADIO NO.2 FUSE |
| *9 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *10 | REMOTE OPERATION CONTROLLER ASSEMBLY (REMOTE TOUCH) |
| *11 | SWITCH AND VOLUME ASSEMBLY | *12 | NAVIGATION ECU |
| *13 | NO. 1 NAVIGATION WIRE | *14 | RADIO RECEIVER ASSEMBLY |
| *15 | DLC3 | *16 | DRIVER SIDE JUNCTION BLOCK ASSEMBLY - IG1 D NO.1 FUSE (w/ Headup Display) - ACC D FUSE (w/ Telematics Transceiver) - IG2 D NO.1 FUSE - MPX-B D NO.1 FUSE - METER FUSE |
| *17 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *18 | TELEPHONE TRANSCEIVER ASSEMBLY |
ILLUSTRATION
| *A | for RHD | *B | w/ Headup Display |
| *1 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | CLOCK ASSEMBLY | *4 | MULTI-DISPLAY |
| *5 | METER MIRROR SUB-ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | DLC3 |
| *9 | DRIVER SIDE JUNCTION BLOCK ASSEMBLY - IG1 D NO.1 FUSE (w/ Headup Display) - IG2 D NO.1 FUSE - MPX-B D NO.1 FUSE - METER FUSE |
*10 | SWITCH AND VOLUME ASSEMBLY |
| *11 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *12 | REMOTE OPERATION CONTROLLER ASSEMBLY (REMOTE TOUCH) |
| *13 | NAVIGATION ECU | *14 | NO. 1 NAVIGATION WIRE |
| *15 | RADIO RECEIVER ASSEMBLY | *16 | PASSENGER SIDE JUNCTION BLOCK ASSEMBLY - MPX-B P NO.1 FUSE (w/ Headup Display) - ACC P NO.1 FUSE - IG1 P NO.1 FUSE - RADIO NO.1 FUSE - RADIO NO.2 FUSE |
ILLUSTRATION
| *A | for 12 Speakers | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 2 SPEAKER ASSEMBLY |
| *3 | FRONT NO. 1 SPEAKER ASSEMBLY RH | *4 | NO. 1 SPEAKER WITH BOX ASSEMBLY RH |
| *5 | NO. 1 SPEAKER WITH BOX ASSEMBLY LH | *6 | NO. 2 SPEAKER WITH BOX ASSEMBLY RH |
| *7 | NO. 2 SPEAKER WITH BOX ASSEMBLY LH | *8 | NO. 3 SPEAKER WITH BOX ASSEMBLY |
| *9 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |
ILLUSTRATION
| *A | for 13 Speakers | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 2 SPEAKER ASSEMBLY |
| *3 | FRONT NO. 1 SPEAKER ASSEMBLY RH | *4 | NO. 1 SPEAKER WITH BOX ASSEMBLY RH |
| *5 | NO. 1 SPEAKER WITH BOX ASSEMBLY LH | *6 | NO. 2 SPEAKER WITH BOX ASSEMBLY RH |
| *7 | NO. 2 SPEAKER WITH BOX ASSEMBLY LH | *8 | NO. 3 SPEAKER WITH BOX ASSEMBLY |
| *9 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |
