QUARTER TRIM SPEAKER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the quarter trim speaker removal/installation are shown below.

Necessary Procedures after parts removed / installed / replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Disconnect cable from negative battery terminal Memorize steering angle neutral point LKA/LDA system

Click here

Pre-collision system
Parking assist monitor system

Click here

Steering sensor zero point calibration Variable gear ratio steering system

Click here


  • Front Seat Assembly RH (Only for removal and installation)

  • Front Seat Assembly LH (Only for removal and installation)

 Initialize position control ECU Front Power Seat Control System

Click here

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

B000WAX

Click here

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. REMOVE NO. 2 DECK BOARD

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Click here

    CAUTION:

    B000Y52

    • Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.

      Click here

    • If the airbag deploys for any reason, it may cause a serious accident.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE FRONT SEAT ASSEMBLY LH

    Click here

  5. REMOVE REAR SEAT CUSHION ASSEMBLY

    Click here

  6. REMOVE REAR SEAT CUSHION LOCK HOOK

    Click here

  7. REMOVE REAR SEAT SIDE GARNISH

    Click here

  8. REMOVE REAR SEATBACK COVER

    Click here

  9. REMOVE REAR SEATBACK ASSEMBLY LH

    Click here

  10. REMOVE FRONT DOOR SCUFF PLATE LH

    Click here

  11. REMOVE QUARTER INSIDE TRIM BOARD LH

    Click here

  12. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

    Click here

  13. REMOVE OUTER LAP BELT ANCHOR COVER

    Click here

  14. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

    Click here

  15. REMOVE QUARTER TRIM PANEL ASSEMBLY LH

    Click here

  16. REMOVE NO. 2 SPEAKER ASSEMBLY WITH BOX

    Note

    Do not touch the cone part of the speaker.

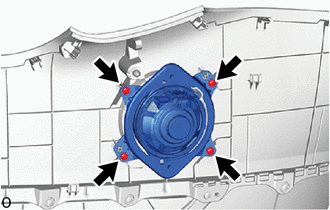

    1. B000ULJ

      Remove the 4 screws and No. 2 speaker assembly with box.
