FRONT DOOR SPEAKER REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)

    Click here

  2. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)

    Click here

  3. REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)

    Click here

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    Click here

  5. REMOVE NO. 1 SPEAKER ASSEMBLY WITH BOX

    Note

    Do not touch the cone part of the speaker.


    1. Disconnect the connector.

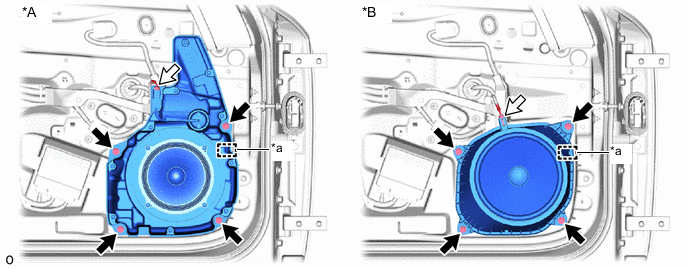

      B000U9HC01
      *A for 12 Speakers *B for 13 Speakers
      *a Guide - -
      B000XM7 Screws B000TT4 Connector

    2. Remove the 4 screws.

    3. Detach the guide and remove the No. 1 speaker assembly with box.
