ACTIVE NOISE CONTROL MICROPHONE COMPONENTS
ILLUSTRATION
| *1 | NEGATIVE BATTERY TERMINAL | *2 | NO. 2 DECK BOARD |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

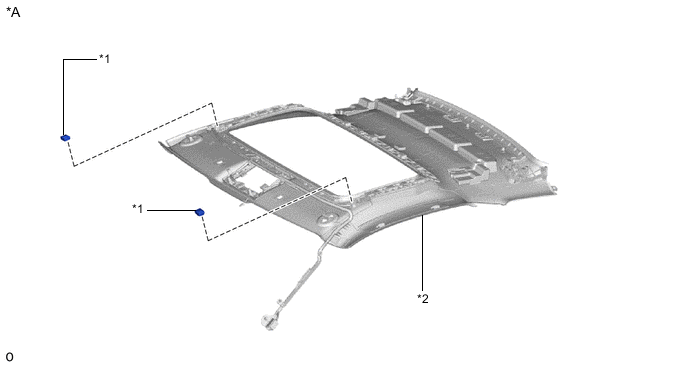

| *A | for Front Side, Glass Roof | - | - |
| *1 | ACTIVE NOISE CONTROL MICROPHONE | *2 | ROOF HEADLINING ASSEMBLY |
ILLUSTRATION

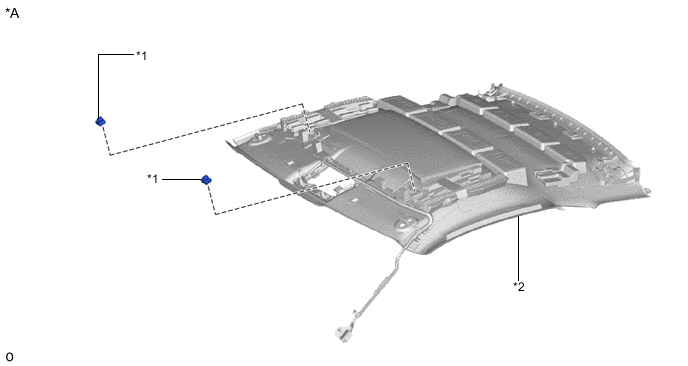

| *A | for Front Side, Carbon Roof | - | - |
| *1 | ACTIVE NOISE CONTROL MICROPHONE | *2 | ROOF HEADLINING ASSEMBLY |
ILLUSTRATION

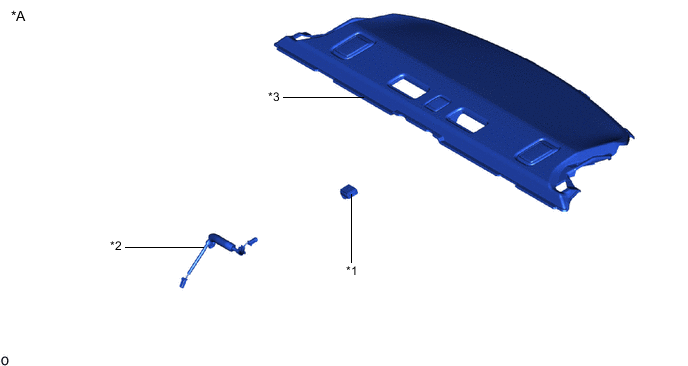

| *A | for Rear Side | - | - |
| *1 | ACTIVE NOISE CONTROL MICROPHONE | *2 | MICROPHONE WIRE |
| *3 | PACKAGE TRAY TRIM PANEL ASSEMBLY | - | - |
