AUDIO AND VISUAL SYSTEM, Diagnostic DTC:B15D6

DTC Code DTC Name
B15D6 Display Disconnected

DESCRIPTION

The multi-display and radio receiver assembly are connected by the AVC-LAN communication line.

This DTC is stored when an AVC-LAN communication error occurs between the multi-display and radio receiver assembly.

DTC No. Detection Item DTC Detection Condition Trouble Area
B15D6 Display Disconnected A device that is listed in the AVC-LAN connected device record of the master unit is missing

  • Multi-display power source circuit

  • AVC-LAN circuit between radio receiver assembly and multi-display

  • Multi-display

  • Radio receiver assembly

  • Harness or connector

Tech Tips

For the AVC-LAN communication line, the radio receiver assembly is the master unit.

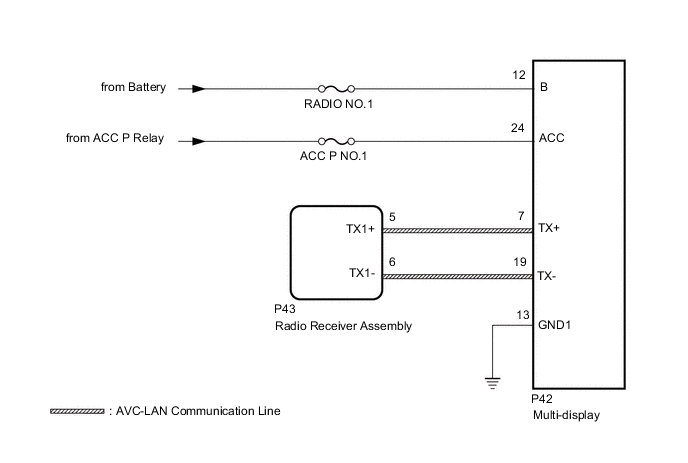

WIRING DIAGRAM

B000ZAEE16

CAUTION / NOTICE / HINT

Note


  • Inspect the fuses for circuits related to this system before performing the following procedure.

  • The following malfunctions may occur if a radio receiver assembly from another vehicle is installed to this vehicle. Therefore, when replacing the radio receiver assembly, be sure to replace it with new one.


    • Communication malfunction DTC is output

    • Does not operate normally

Tech Tips

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

Click here

PROCEDURE


  1. CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)


    1. Check for optional components.


      1. Check that optional components (including associated wiring) which generate radio waves are not installed.

        Result
        Result Proceed to
        Optional components (including associated wiring) are installed. A
        Optional components (including associated wiring) are not installed. B

        Tech Tips


        • Electrical noise from radio waves generated by optional components or the wiring for those components may affect AVC-LAN communication.

        • This DTC may be stored when an AVC-LAN communication error occurs due to electrical noise.


    B

    GO TO STEP 4 Click here

    A

  2. REMOVE OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)


    1. Remove optional components (including associated wiring).

      Note

      Do not remove optional components or associated wiring without the permission of the customer.

      Result
      Proceed to
      NEXT

    NEXT

  3. CHECK DTC


    1. Clear the DTCs.

      Click here


      Body Electrical > Navigation System > Clear DTCs

    2. Recheck for DTCs and check that no DTCs are output.

      Click here


      Body Electrical > Navigation System > Trouble Codes
      OK
      No DTCs are output.
      Result
      Proceed to
      OK
      NG

    OK

    END (COMMUNICATION MALFUNCTION DUE TO NOISE)

    NG

  4. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - BATTERY AND BODY GROUND)


    1. B000W00C25
      *a

      Front view of wire harness connector

      (to Multi-display)

      Disconnect the multi-display connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      P42-13 (GND1) - Body ground Always Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      P42-12 (B) - P42-13 (GND1) Always 11 to 14 V
      P42-24 (ACC) - P42-13 (GND1) Engine switch on (ACC) 11 to 14 V
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  5. INSPECT RADIO RECEIVER ASSEMBLY (TX1+, TX1-)


    1. B000YX1N01

      Remove the radio receiver assembly.

      Click here

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      5 (TX1+) - 6 (TX1-) Always 60 to 80 Ω
      Result
      Proceed to
      OK
      NG

    NG

    REPLACE RADIO RECEIVER ASSEMBLY Click here

    OK

  6. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSEMBLY - MULTI-DISPLAY)


    1. Disconnect the P43 radio receiver assembly connector.

    2. Disconnect the P42 multi-display connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      P43-5 (TX1+) - P42-7 (TX+) Always Below 1 Ω
      P43-6 (TX1-) - P42-19 (TX-) Always Below 1 Ω
      P43-5 (TX1+) - Body ground Always 10 kΩ or higher
      P43-6 (TX1-) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  7. CHECK MULTI-DISPLAY


    1. Replace the multi-display with a new or known good one.

      Click here

    2. Clear the DTCs.

      Click here


      Body Electrical > Navigation System > Clear DTCs

    3. Recheck for DTCs and check that no DTCs are output.

      Click here


      Body Electrical > Navigation System > Trouble Codes
      OK
      No DTCs are output.
      Result
      Proceed to
      OK
      NG

    OK

    END (MULTI-DISPLAY IS DEFECTIVE)

    NG

    REPLACE RADIO RECEIVER ASSEMBLY Click here
