REAR SHOCK ABSORBER DISPOSAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. DISPOSE OF REAR SHOCK ABSORBER ASSEMBLY LH


    1. Fully extend the front shock absorber assembly.

    2. B000YPPN01

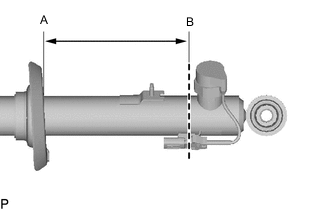

      Using a drill, make a hole in the cylinder between (A) and (B) shown in the illustration to discharge the gas inside.

      CAUTION:

      Always use proper safety equipment and be careful when drilling because shards of metal may fly about.

      Tech Tips

      The gas is colorless, odorless and non-poisonous.
