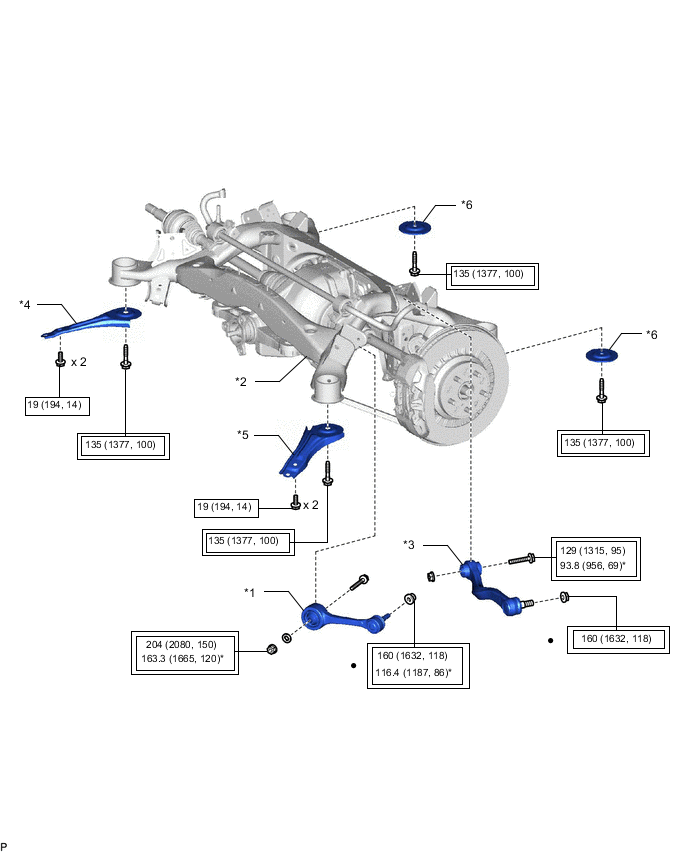

REAR UPPER ARM COMPONENTS
ILLUSTRATION
| *1 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH | *2 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY LH | *4 | REAR LOWER SUSPENSION MEMBER STOPPER RH |
| *5 | REAR LOWER SUSPENSION MEMBER STOPPER LH | *6 | REAR LOWER SUSPENSION MEMBER STOPPER |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with ball joint lock nut wrench | ● | Non-reusable part |
