REGISTER ILLUMINATION(for Driver Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the No. 1 instrument panel register assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative when not Performed Link
Disconnect cable from negative(-) battery terminal Memorize steering angle neutral point LKA/LDA system

Click here

Pre-collision system
Parking assist monitor system

Click here

Steering sensor zero point calibration Variable gear ratio steering system

Click here

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE NO. 2 DECK BOARD

    Click here

  2. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    B000W7Y

    Click here

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Click here

    CAUTION:


    • Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.

    • If the airbag deploys for any reason, it may cause a serious accident.

    B000Y52

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE INSTRUMENT PANEL ASSEMBLY

    Click here

  5. REMOVE INSTRUMENT PANEL REGISTER BEZEL

    Click here

  6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

    Click here

  7. REMOVE NO. 1 HEATER TO REGISTER DUCT

    Click here

  8. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

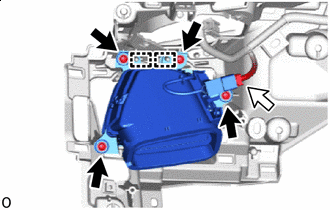

    1. B000UA5C03
      B000XM7 Screw
      B000TT4 Connector

      Remove the 4 screws.

    2. Detach the guide to remove the No. 1 instrument panel register assembly.

    3. Disconnect the connector.
