DRIVING SUPPORT ECU COMPONENTS
ILLUSTRATION
| *1 | NEGATIVE BATTERY TERMINAL | *2 | NO. 2 DECK BOARD |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

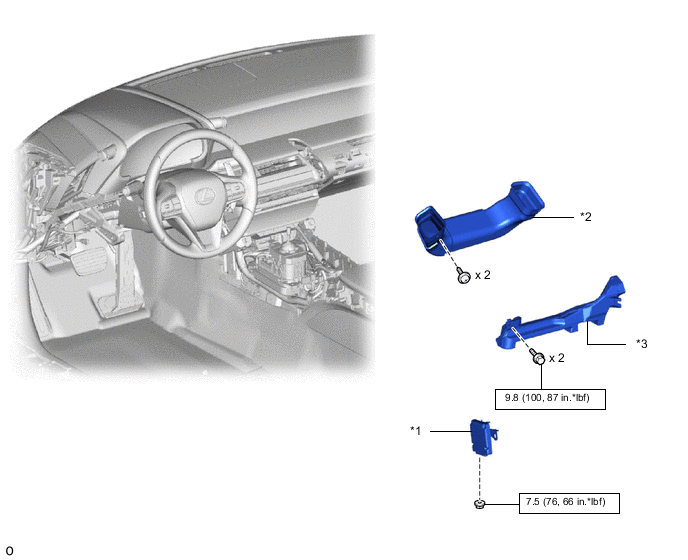

ILLUSTRATION
| *1 | DRIVING SUPPORT ECU ASSEMBLY | *2 | HEATER TO REGISTER CENTER SUB DUCT |
| *3 | NO. 2 AIR DUCT | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
