MILLIMETER WAVE RADAR SENSOR REASSEMBLY

CAUTION / NOTICE / HINT

Note

If the No. 1 millimeter wave radar sensor bracket has been removed/installed, be sure to perform adjustment.

PROCEDURE


  1. INSTALL NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET

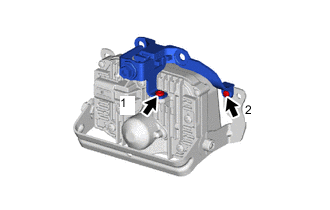

    1. B000XE3N01

      Temporarily install the No. 1 millimeter wave radar sensor bracket with the 2 screws.

    2. Tighten the 2 screws in the order shown in the illustration.
