MILLIMETER WAVE RADAR SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during millimeter wave radar sensor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative when not Performed Link

  • Replace millimeter wave radar sensor assembly

  • No. 1 millimeter wave radar sensor bracket removal and installation

 Adjust millimeter wave radar sensor assembly

  • Dynamic radar cruise control system

  • Forward recognition camera system

  • LKA/LDA system

  • Pre-collision system

Click here

PROCEDURE


  1. REMOVE FRONT BUMPER COVER

    Click here

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Note

    Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

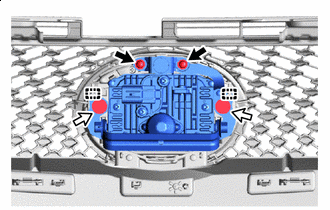

    1. B000VQLC01
      B000XM7 Screw
      B000TT4 Bolt

      Remove the 2 bolts and 2 screws.

    2. Detach the guide and remove the millimeter wave radar sensor assembly.
