LKA/LDA SYSTEM PARTS LOCATION

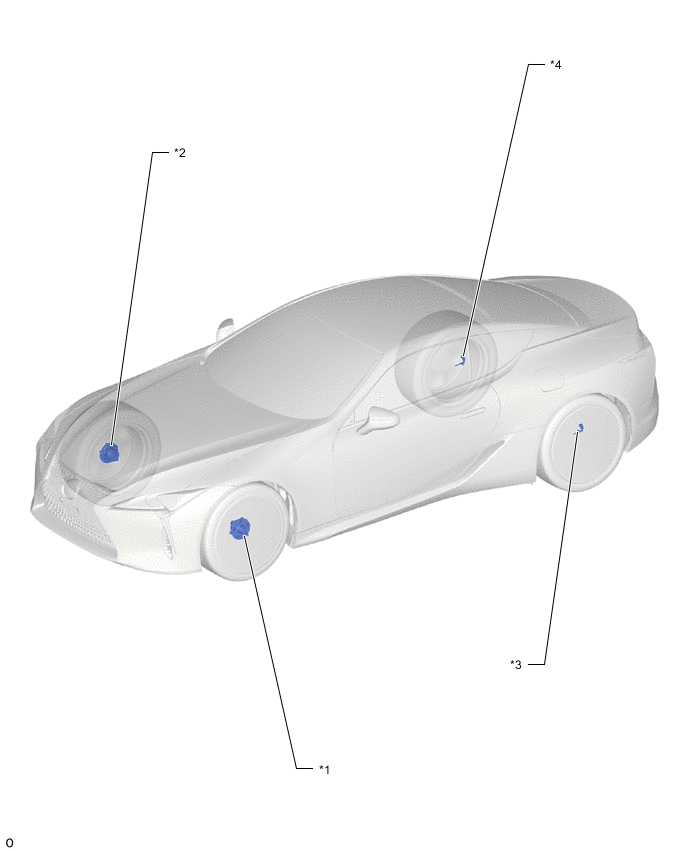

ILLUSTRATION
| *1 | FRONT SPEED SENSOR LH (FRONT AXLE HUB SUB-ASSEMBLY LH) | *2 | FRONT SPEED SENSOR RH (FRONT AXLE HUB SUB-ASSEMBLY RH) |
| *3 | REAR SPEED SENSOR LH | *4 | REAR SPEED SENSOR RH |

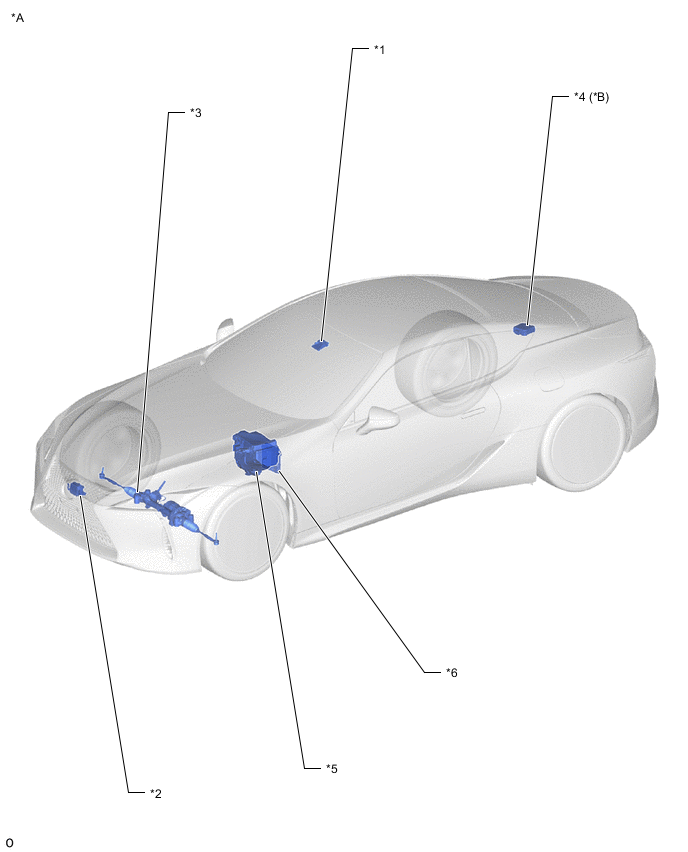

ILLUSTRATION
| *A | for LHD | *B | w/ Variable Gear Ratio Steering System |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | RACK AND PINION POWER STEERING GEAR ASSEMBLY | *4 | DRS ECU (REAR STEERING CONTROL ECU) |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK - R/B-IG1 NO. 1 FUSE |
*6 | ECM |

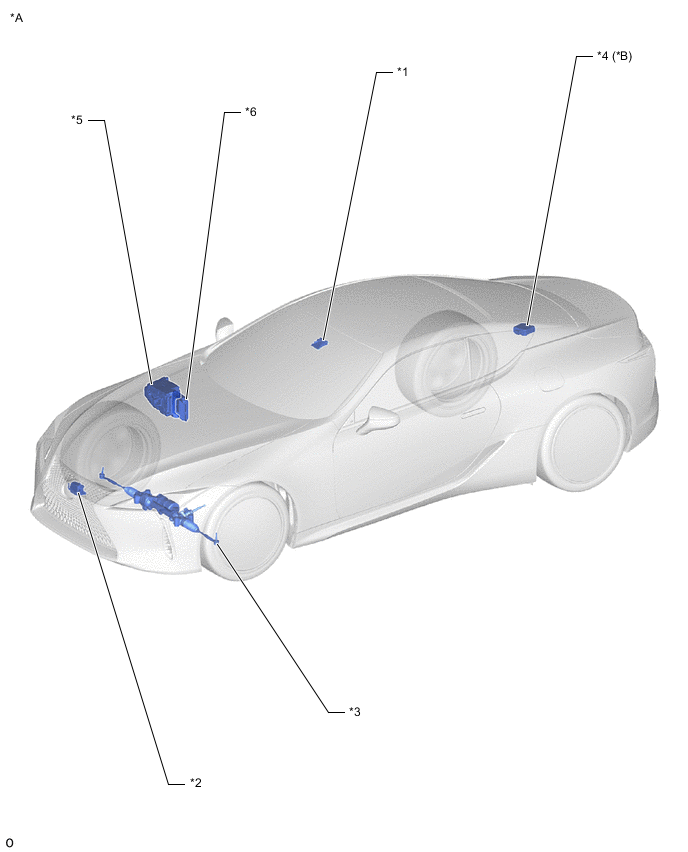

ILLUSTRATION
| *A | for RHD | *B | w/ Variable Gear Ratio Steering System |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | RACK AND PINION POWER STEERING GEAR ASSEMBLY | *4 | DRS ECU (REAR STEERING CONTROL ECU) |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK - R/B-IG1 NO. 1 FUSE |
*6 | ECM |

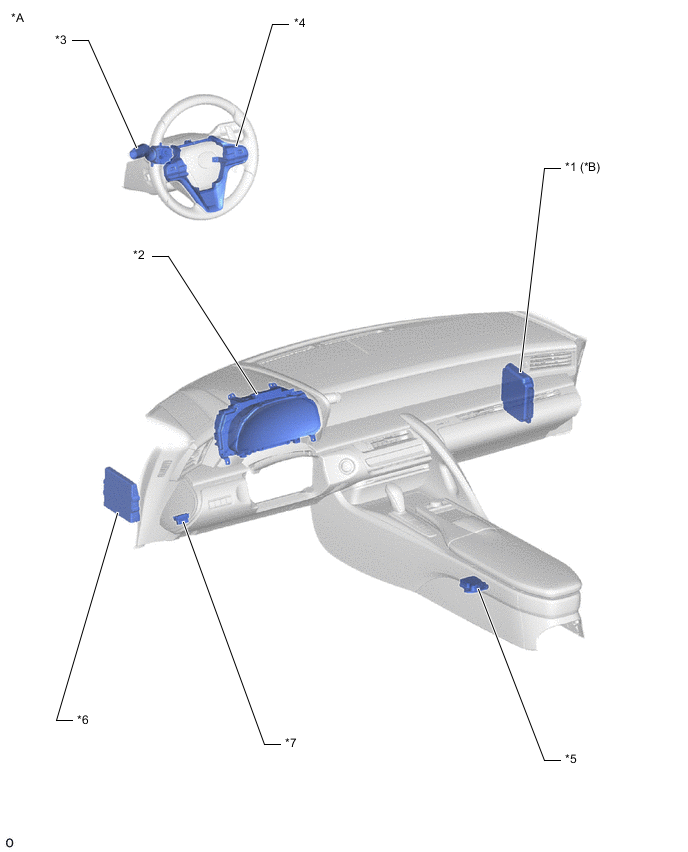

ILLUSTRATION
| *A | for LHD | *B | w/ Variable Gear Ratio Steering System |
| *1 | VGRS ECU (FRONT STEERING CONTROL ECU) | *2 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - LKA/LDA INDICATOR - LKA/LDA BUZZER |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY - TURN SIGNAL SWITCH |
*4 | STEERING PAD SWITCH ASSEMBLY - LKA/LDA MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH) |
| *5 | ACCELERATION SENSOR (YAW RATE SENSOR) | *6 | SKID CONTROL ECU ASSEMBLY |
| *7 | DLC3 | - | - |

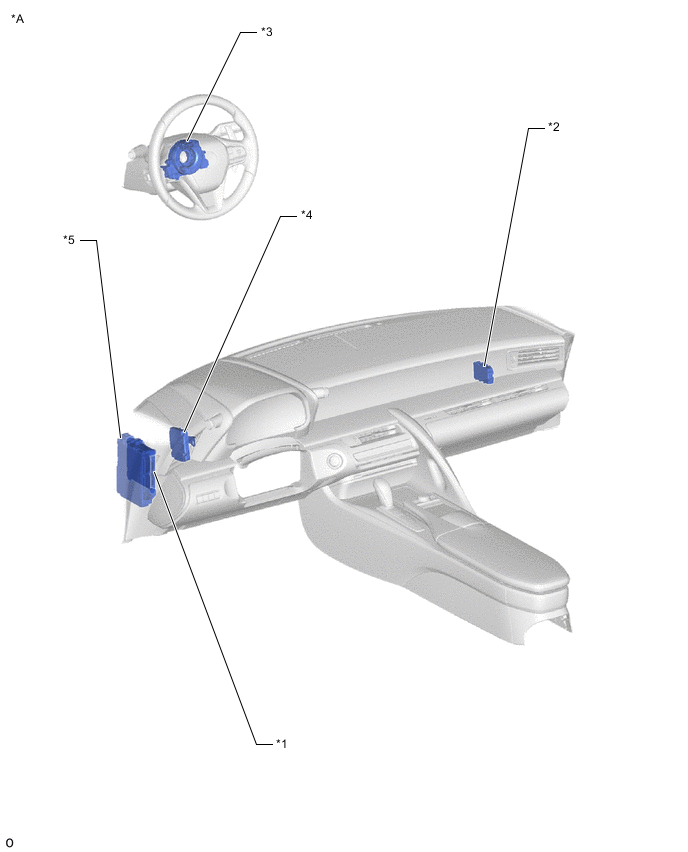

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | NETWORK GATEWAY ECU |
| *3 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - STEERING SENSOR |
*4 | DRIVING SUPPORT ECU ASSEMBLY |
| *5 | DRIVER SIDE JUNCTION BLOCK - IG1 D NO. 2 FUSE |
- | - |

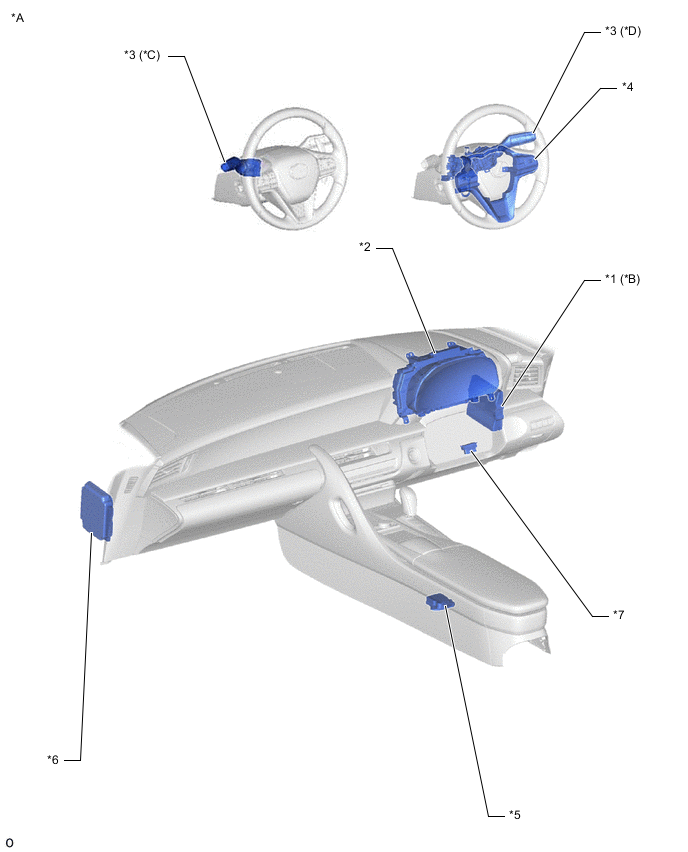

ILLUSTRATION
| *A | for RHD | *B | w/ Variable Gear Ratio Steering System |
| *C | for LH Side | *D | for RH Side |
| *1 | VGRS ECU (FRONT STEERING CONTROL ECU) | *2 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - LKA/LDA INDICATOR - LKA/LDA BUZZER |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY - TURN SIGNAL SWITCH |
*4 | STEERING PAD SWITCH ASSEMBLY - LKA/LDA MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH) |
| *5 | ACCELERATION SENSOR (YAW RATE SENSOR) | *6 | SKID CONTROL ECU ASSEMBLY |
| *7 | DLC3 | - | - |

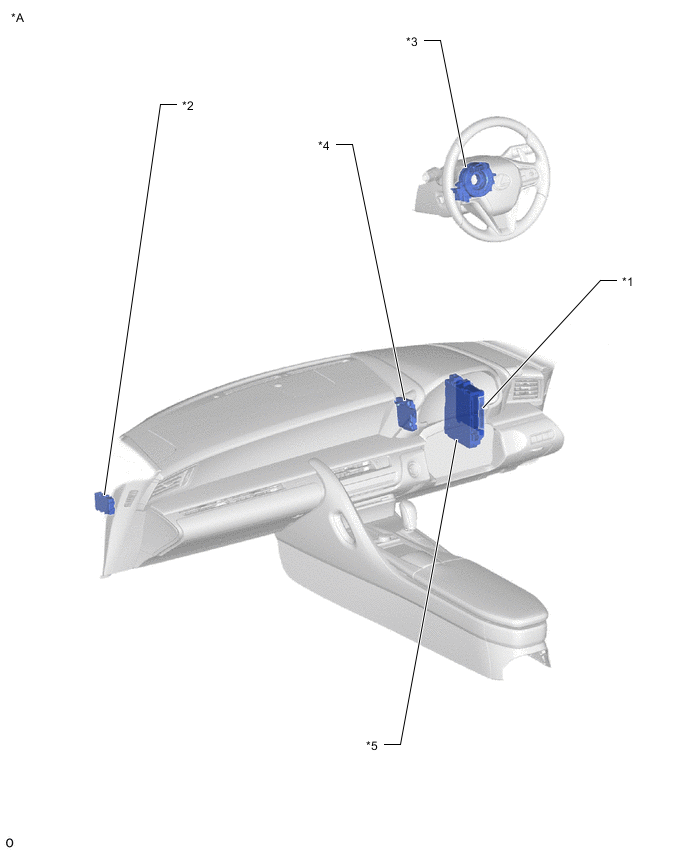

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | NETWORK GATEWAY ECU |
| *3 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - STEERING SENSOR |
*4 | DRIVING SUPPORT ECU ASSEMBLY |
| *5 | DRIVER SIDE JUNCTION BLOCK - IG1 D NO. 2 FUSE |
- | - |
