FORWARD RECOGNITION CAMERA SYSTEM PARTS LOCATION

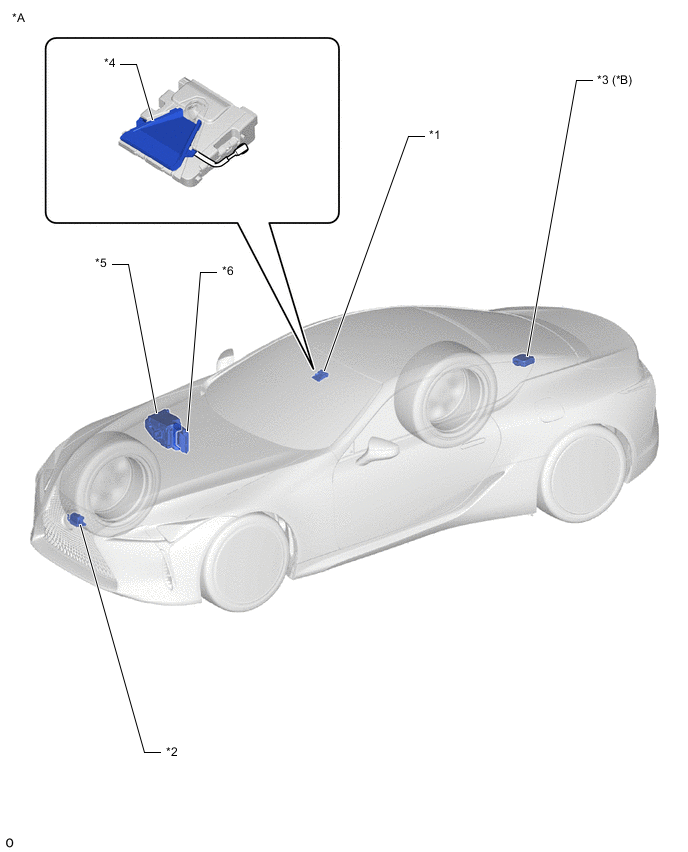

ILLUSTRATION
| *A | for LHD | *B | w/ Variable Gear Ratio Steering System |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | DRS ECU (REAR STEERING CONTROL ECU) | *4 | FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK - R/B-IG1 NO. 1 FUSE |
*6 | ECM |

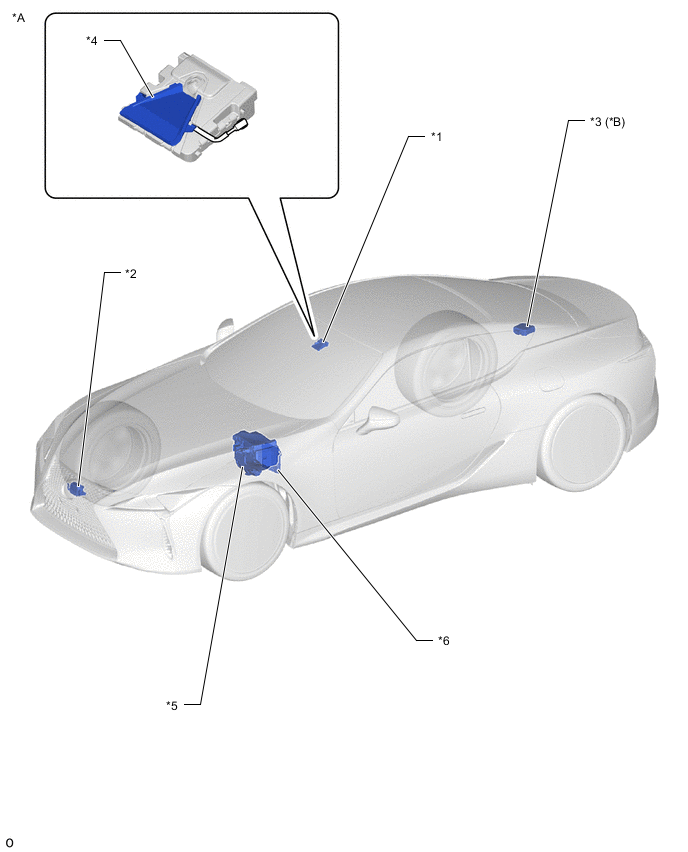

ILLUSTRATION
| *A | for RHD | *B | w/ Variable Gear Ratio Steering System |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | DRS ECU (REAR STEERING CONTROL ECU) | *4 | FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK - R/B-IG1 NO. 1 FUSE |
*6 | ECM |

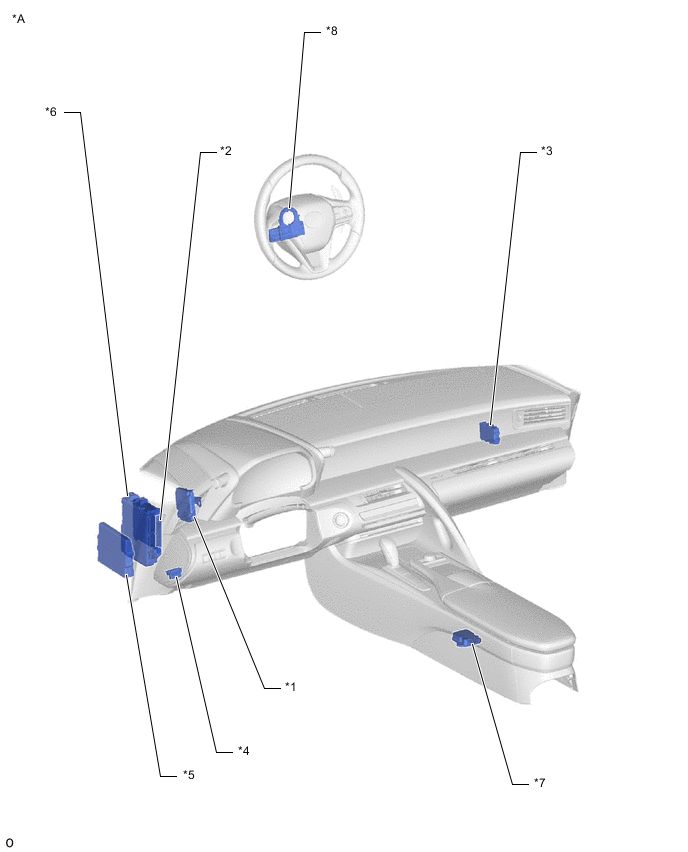

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | DRIVING SUPPORT ECU ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | NETWORK GATEWAY ECU | *4 | DLC3 |
| *5 | SKID CONTROL ECU ASSEMBLY | *6 | DRIVER SIDE JUNCTION BLOCK - IG1 D NO. 2 FUSE |
| *7 | YAW RATE SENSOR | *8 | STEERING SENSOR |

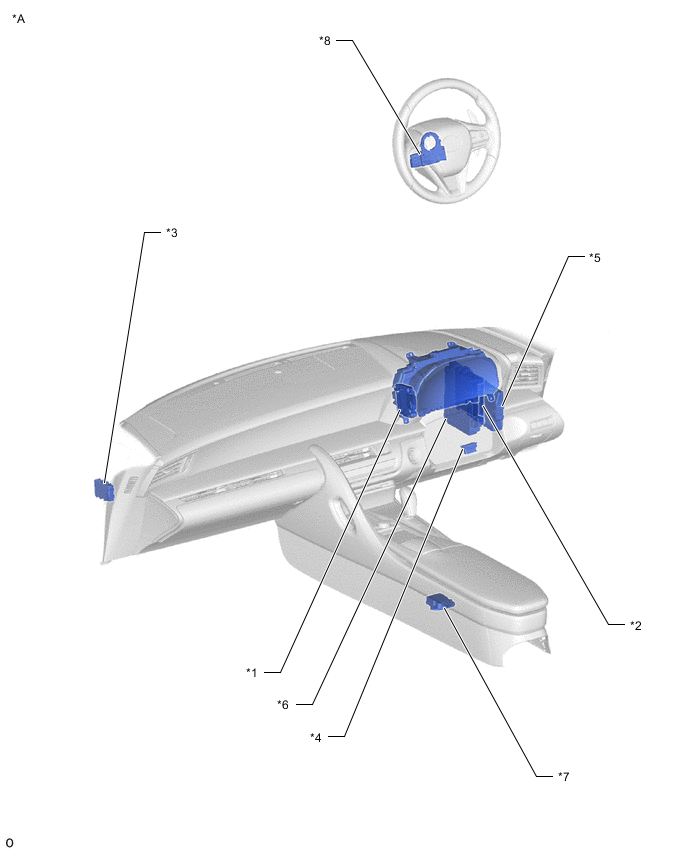

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | DRIVING SUPPORT ECU ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | NETWORK GATEWAY ECU | *4 | DLC3 |
| *5 | SKID CONTROL ECU ASSEMBLY | *6 | DRIVER SIDE JUNCTION BLOCK - IG1 D NO. 2 FUSE |
| *7 | YAW RATE SENSOR | *8 | STEERING SENSOR |
