CRUISE CONTROL SYSTEM Steering Pad Switch Circuit

DESCRIPTION

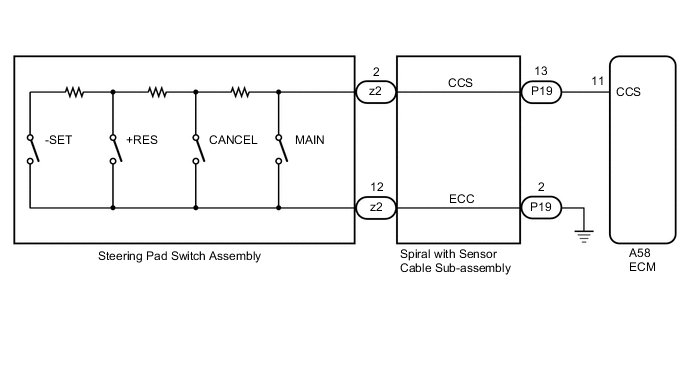

WIRING DIAGRAM

B000YMME05

CAUTION / NOTICE / HINT

Note

The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.

Click here

PROCEDURE


  1. READ VALUE USING GTS (CANCEL SWITCH, -SET SWITCH, +RES SWITCH AND CRUISE MAIN SWITCH OPERATION CONDITION)


    1. Connect the GTS to the DLC3.

    2. Turn the engine switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Powertrain / Cruise Control / Data List.

    5. Read the Data List according to the display on the GTS.

      Click here


      Powertrain > Cruise Control > Data List
      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Cancel Switch CANCEL switch status ON or OFF

      ON: CANCEL switch pushed

      OFF: CANCEL switch not pushed

      		 -
      -SET Switch -SET switch status ON or OFF

      ON: -SET switch pushed

      OFF: -SET switch not pushed

      		 -
      +RES Switch +RES switch status ON or OFF

      ON: +RES switch pushed

      OFF: +RES switch not pushed

      		 -
      Cruise Main Switch Operation Condition Cruise control main switch status ON or OFF

      ON: Cruise control main switch pushed

      OFF: Cruise control main switch not pushed

      		 -

      Powertrain > Cruise Control > Data List
      Tester Display
      Cancel Switch
      -SET Switch
      +RES Switch
      Cruise Main Switch Operation Condition
      OK
      The Data List items shown in the table change according to the operation of the steering pad switch assembly.
      Result
      Proceed to
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

  2. INSPECT STEERING PAD SWITCH ASSEMBLY


    1. Remove the steering pad switch assembly.

      Click here

    2. Inspect the steering pad switch assembly.

      Click here

      Result
      Proceed to
      OK
      NG

    NG

    REPLACE STEERING PAD SWITCH ASSEMBLY Click here

    OK

  3. INSPECT SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY


    1. Remove the spiral with sensor cable sub-assembly.

      Click here

    2. Inspect the spiral with sensor cable sub-assembly.

      Click here

      Result
      Proceed to
      OK
      NG

    NG

    REPLACE SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY Click here

    OK

  4. CHECK HARNESS AND CONNECTOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - ECM AND BODY GROUND)


    1. Disconnect the P19 spiral cable sub-assembly connector.

    2. Disconnect the A58 ECM connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      P19-13 (CCS) - A58-11 (CCS) Always Below 1 Ω
      P19-2 (ECC) - Body ground Always Below 1 Ω
      P19-13 (CCS) or A58-11 (CCS) - Body ground Always 10 kΩ or higher

    4. Connect the A58 ECM connector.

    5. Connect the P19 spiral cable sub-assembly connector.

      Result
      Proceed to
      OK
      NG

    OK

    REPLACE ECM Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - ECM AND BODY GROUND)
