CRUISE CONTROL SYSTEM ROAD TEST


  1. PROBLEM SYMPTOM CONFIRMATION


    1. Inspect the SET function.

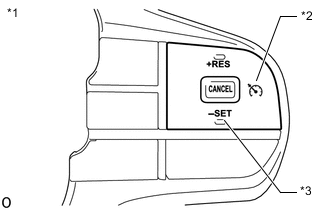

      1. B000UEGC01
        *1 Steering Pad Switch Assembly
        *2 Cruise Control Main Switch
        *3 -SET Switch

        Turn the cruise control system on using the cruise control main switch.

      2. Check that the cruise control indicator illuminates in the combination meter assembly.

      3. Drive at a speed between approximately 40 km/h (25 mph) or higher.

      4. Push the -SET switch.

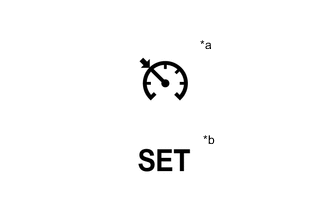

      5. B000U39C53
        *a Cruise Control Indicator
        *b Cruise Control SET Indicator

        Check that the cruise control SET indicator illuminates at this time.

      6. After releasing the switch, check that the vehicle maintains the set speed.

    2. B000UEGC01
      *1 Steering Pad Switch Assembly
      *2 Cruise Control Main Switch
      *3 -SET Switch

      Inspect the + (ACCEL) function.


      1. Turn the cruise control system on using the cruise control main switch.

      2. Drive at a speed between approximately 40 km/h (25 mph) or higher.

      3. Push the -SET switch.

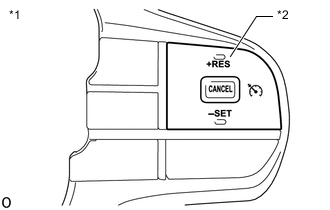

      4. B000UEGC02
        *1 Steering Pad Switch Assembly
        *2 +RES Switch

        Check that vehicle speed increases while the +RES switch is pushed, and that the vehicle maintains the newly set speed when the switch is released.

      5. Push the +RES switch and then release it immediately. Check that vehicle speed increases by approximately 1 km/h or 1 mph (tap-up control).

    3. B000UEGC01
      *1 Steering Pad Switch Assembly
      *2 Cruise Control Main Switch
      *3 -SET Switch

      Inspect the - (COAST) function.


      1. Turn the cruise control system on using the cruise control main switch.

      2. Drive at a speed between approximately 40 km/h (25 mph) or higher.

      3. Push the -SET switch.

      4. Check that vehicle speed decreases while the -SET switch is pushed, and that the vehicle maintains the newly set speed when the switch is released.

      5. Push the -SET switch, and then release it immediately. Check that vehicle speed decreases by approximately 1 km/h or 1 mph (tap-down control).

    4. B000UEGC01
      *1 Steering Pad Switch Assembly
      *2 Cruise Control Main Switch
      *3 -SET Switch

      Inspect the CANCEL function.


      1. Turn the cruise control system on using the cruise control main switch.

      2. Drive at a speed between approximately 40 km/h (25 mph) or higher.

      3. Push the -SET switch.

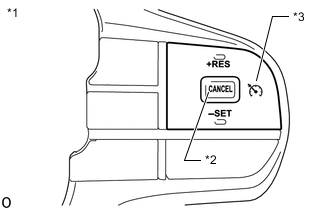

      4. B000UEGC03
        *1 Steering Pad Switch Assembly
        *2 CANCEL Switch
        *3 Cruise Control Main Switch

        When any of the following are performed, check that control of vehicle speed by the cruise control system is canceled and that the normal driving mode (no control of vehicle speed by the cruise control system) resumes.


        • Depressing the brake pedal.

        • Moving the shift position from D to any other position.

        • Selecting the 3rd, 2nd or 1st range using the transmission shift switch assembly with the shift position in D.

        • Pushing the CANCEL switch.

        • Turning the cruise control system off using the cruise control main switch (The stored vehicle speed in the ECM is not maintained.).

    5. B000UEGC01
      *1 Steering Pad Switch Assembly
      *2 Cruise Control Main Switch
      *3 -SET Switch

      Inspect the RES (RESUME) function.


      1. Turn the cruise control system on using the cruise control main switch.

      2. Drive at a speed between approximately 40 km/h (25 mph) or higher.

      3. Push the -SET switch.

      4. Cancel control of vehicle speed by the cruise control system by performing any of the above operations (other than turning the cruise control system off using the cruise control main switch).

      5. B000UEGC02
        *1 Steering Pad Switch Assembly
        *2 +RES Switch

        After pushing the +RES switch at a speed of more than 40 km/h (25 mph), check that the vehicle resumes the speed set prior to cancellation.
