STARTER COMPONENTS

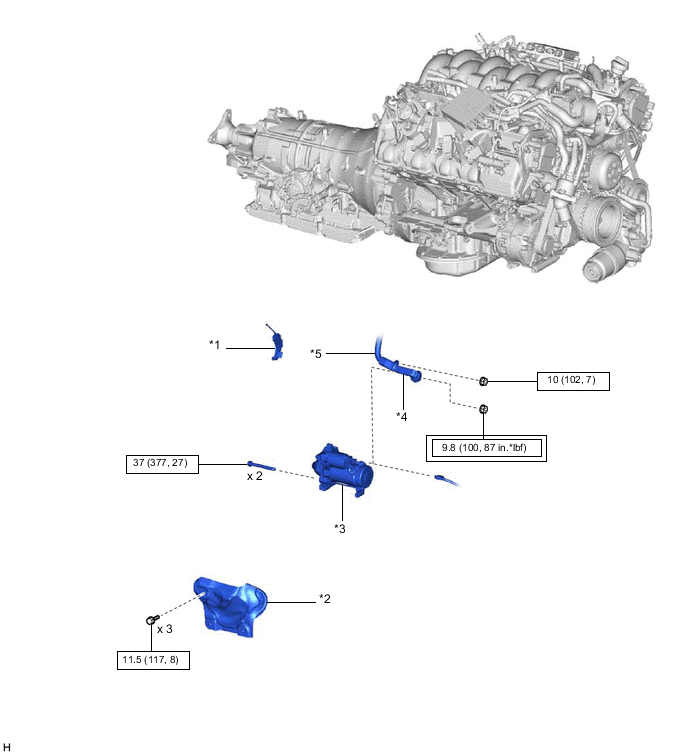

ILLUSTRATION
| *1 | FLYWHEEL HOUSING SIDE COVER | *2 | NO. 3 EXHAUST MANIFOLD HEAT INSULATOR |
| *3 | STARTER ASSEMBLY | *4 | TERMINAL COVER |
| *5 | ENGINE WIRE | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |

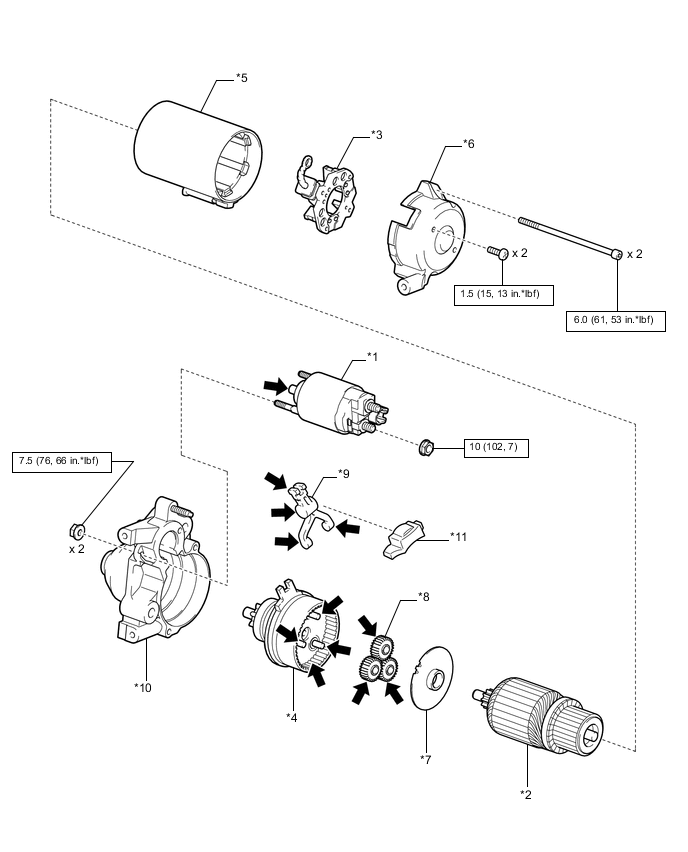

ILLUSTRATION
| *1 | MAGNET STARTER SWITCH ASSEMBLY | *2 | STARTER ARMATURE ASSEMBLY |
| *3 | STARTER BRUSH HOLDER ASSEMBLY | *4 | STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY |
| *5 | STARTER YOKE ASSEMBLY | *6 | STARTER COMMUTATOR END FRAME ASSEMBLY |
| *7 | STARTER ARMATURE PLATE | *8 | PLANETARY GEAR |
| *9 | PINION DRIVE LEVER | *10 | STARTER DRIVE HOUSING ASSEMBLY |
| *11 | RUBBER SEAL | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
High-temperature Grease |
