CRUISE CONTROL SYSTEM PARTS LOCATION
ILLUSTRATION

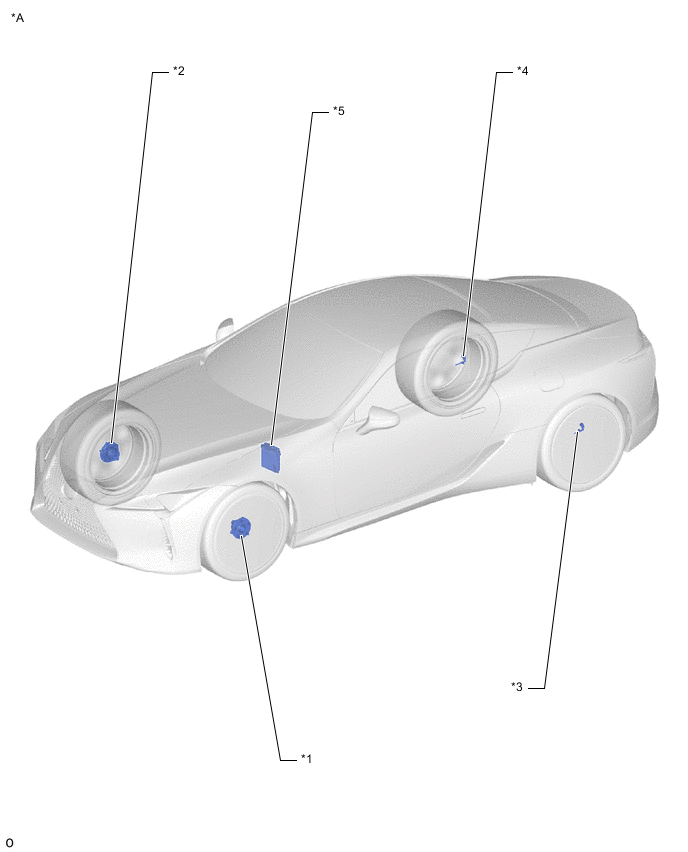

| *A | for LHD | - | - |
| *1 | FRONT SPEED SENSOR LH (FRONT AXLE HUB SUB-ASSEMBLY LH) | *2 | FRONT SPEED SENSOR RH (FRONT AXLE HUB SUB-ASSEMBLY RH) |
| *3 | REAR SPEED SENSOR LH | *4 | REAR SPEED SENSOR RH |
| *5 | ECM | - | - |
ILLUSTRATION

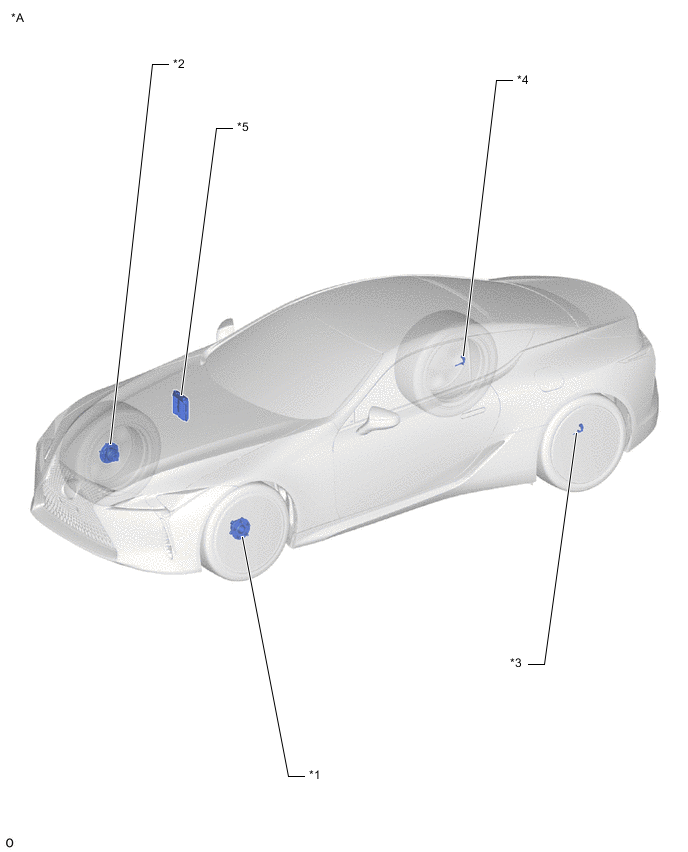

| *A | for RHD | - | - |
| *1 | FRONT SPEED SENSOR LH (FRONT AXLE HUB SUB-ASSEMBLY LH) | *2 | FRONT SPEED SENSOR RH (FRONT AXLE HUB SUB-ASSEMBLY RH) |
| *3 | REAR SPEED SENSOR LH | *4 | REAR SPEED SENSOR RH |
| *5 | ECM | - | - |
ILLUSTRATION

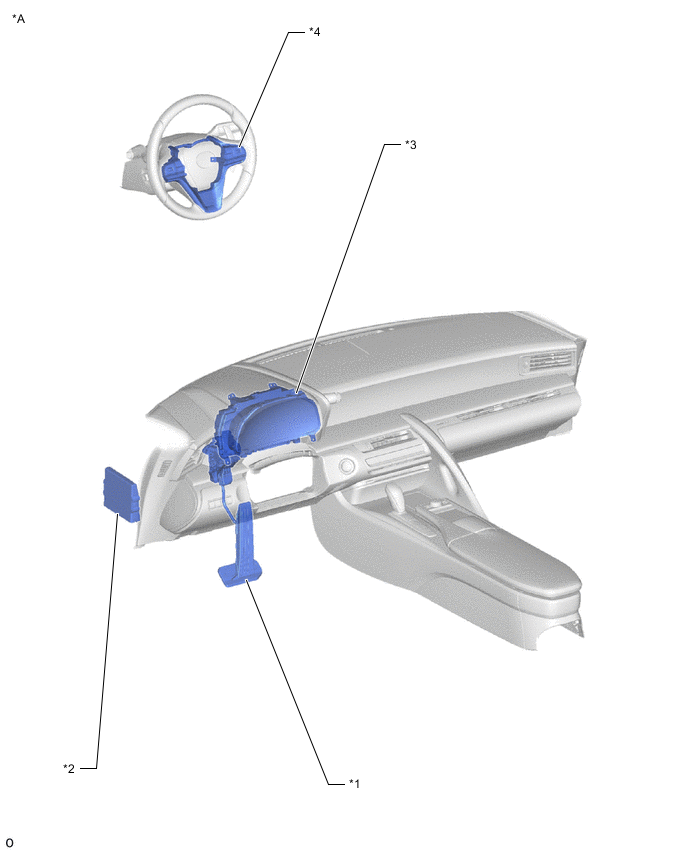

| *A | for LHD | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | SKID CONTROL ECU ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY - CRUISE CONTROL INDICATOR - CRUISE CONTROL SET INDICATOR |
*4 | STEERING PAD SWITCH ASSEMBLY - CRUISE CONTROL MAIN SWITCH - +RES SWITCH - -SET SWITCH - CANCEL SWITCH |
ILLUSTRATION

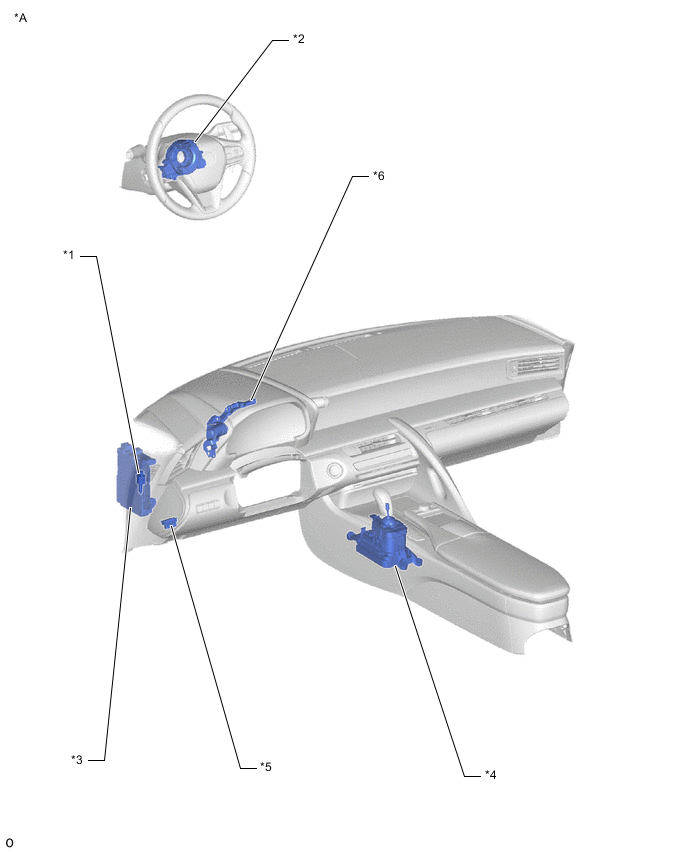

| *A | for LHD | - | - |
| *1 | STOP LIGHT SWITCH ASSEMBLY | *2 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *3 | DRIVER SIDE JUNCTION BLOCK - IG2 D NO. 3 FUSE - STOP FUSE |
*4 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *5 | DLC3 | *6 | NO. 2 COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH |
ILLUSTRATION

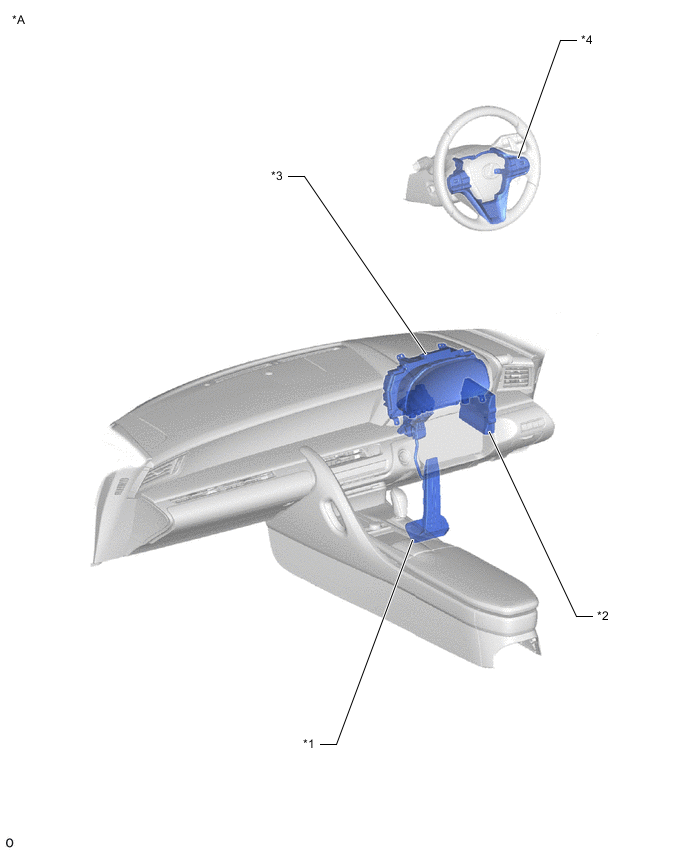

| *A | for RHD | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | SKID CONTROL ECU ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY - CRUISE CONTROL INDICATOR - CRUISE CONTROL SET INDICATOR |
*4 | STEERING PAD SWITCH ASSEMBLY - CRUISE CONTROL MAIN SWITCH - +RES SWITCH - -SET SWITCH - CANCEL SWITCH |
ILLUSTRATION

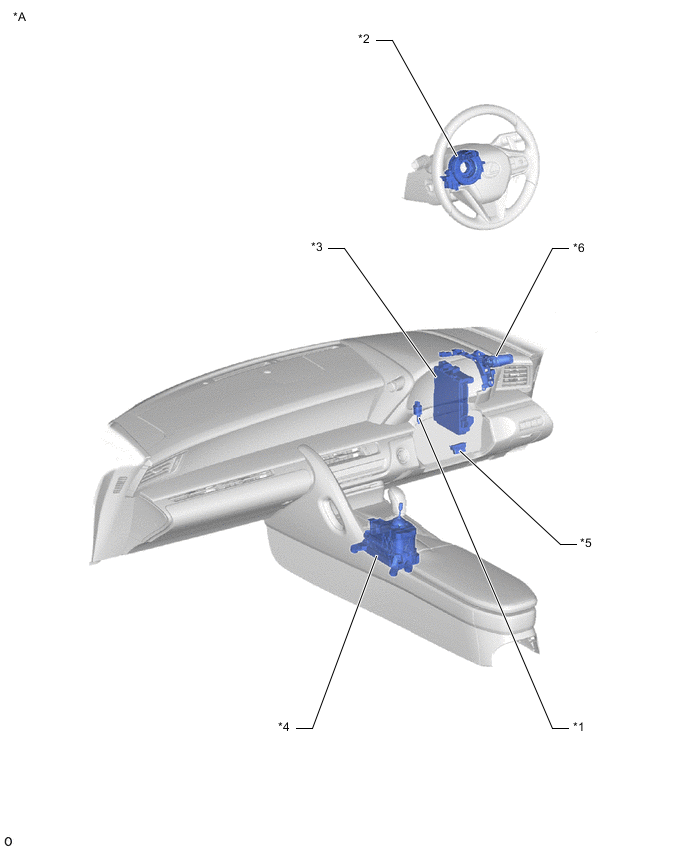

| *A | for RHD | - | - |
| *1 | STOP LIGHT SWITCH ASSEMBLY | *2 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *3 | DRIVER SIDE JUNCTION BLOCK - IG2 D NO. 3 FUSE - STOP FUSE |
*4 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *5 | DLC3 | *6 | NO. 2 COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH |
