SCAVENGING PUMP REMOVAL

PROCEDURE


  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Click here

  2. REMOVE NO. 1 OIL PIPE

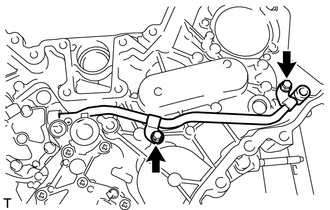

    1. B000UWC

      Remove the 2 bolts and No. 1 oil pipe from the scavenging pump assembly and timing chain cover assembly.

    2. Remove the oil pipe seal and O-ring from the No. 1 oil pipe.

  3. REMOVE NO. 2 OIL PIPE

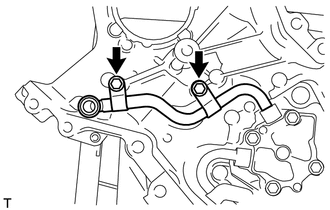

    1. B000W0O

      Remove the 2 bolts and No. 2 oil pipe from the scavenging pump assembly and timing chain cover assembly.

    2. Remove the oil pipe seal and O-ring from the No. 2 oil pipe.

  4. REMOVE NO. 3 OIL PIPE

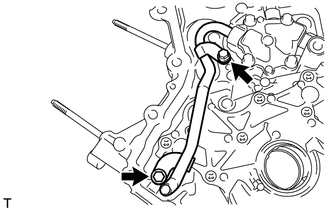

    1. B000Y3J

      Remove the 2 bolts and No. 3 oil pipe from the scavenging pump assembly and timing chain cover assembly.

    2. Remove the O-ring from the No. 3 oil pipe.

  5. REMOVE SCAVENGING PUMP ASSEMBLY

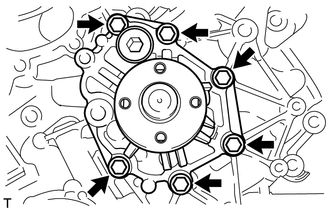

    1. B000TVF

      Remove the 6 bolts, scavenging pump assembly and gasket.
