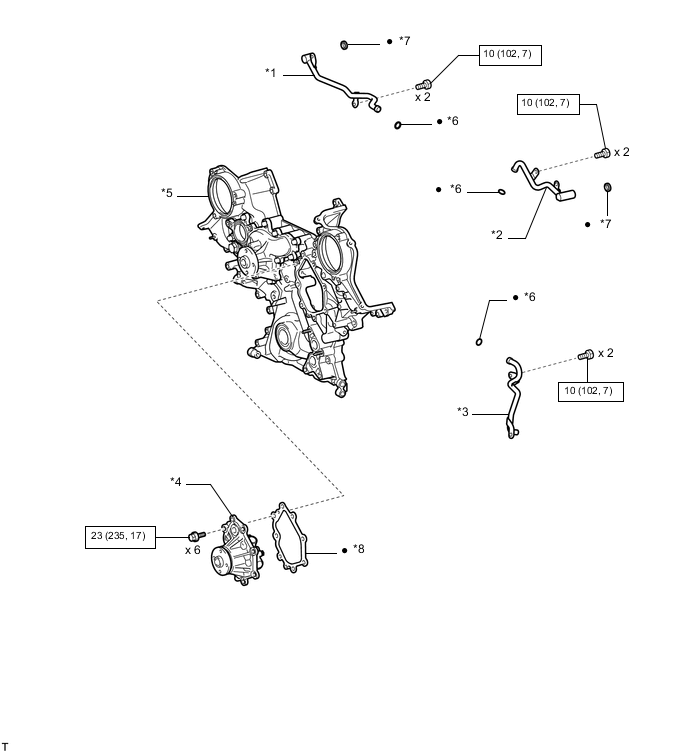

SCAVENGING PUMP COMPONENTS
ILLUSTRATION
| *1 | NO. 1 OIL PIPE | *2 | NO. 2 OIL PIPE |
| *3 | NO. 3 OIL PIPE | *4 | SCAVENGING PUMP ASSEMBLY |
| *5 | TIMING CHAIN COVER ASSEMBLY | *6 | O-RING |
| *7 | OIL PIPE SEAL | *8 | GASKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
