STARTING SYSTEM PARTS LOCATION

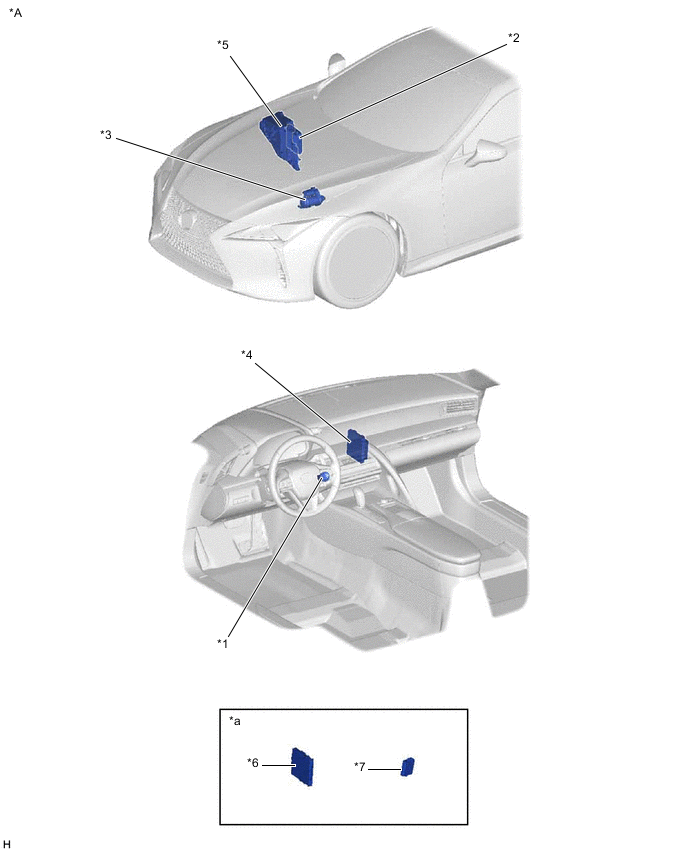

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | ENGINE SWITCH | *2 | ECM |
| *3 | STARTER ASSEMBLY | *4 | SHIFT CONTROL ECU |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK - ST NO. 1 RELAY - ST NO. 1 FUSE |
*6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | ID CODE BOX (IMMOBILISER CODE ECU) | - | - |
| *a | Refer to Service Bulletin for installation position of the parts. | - | - |

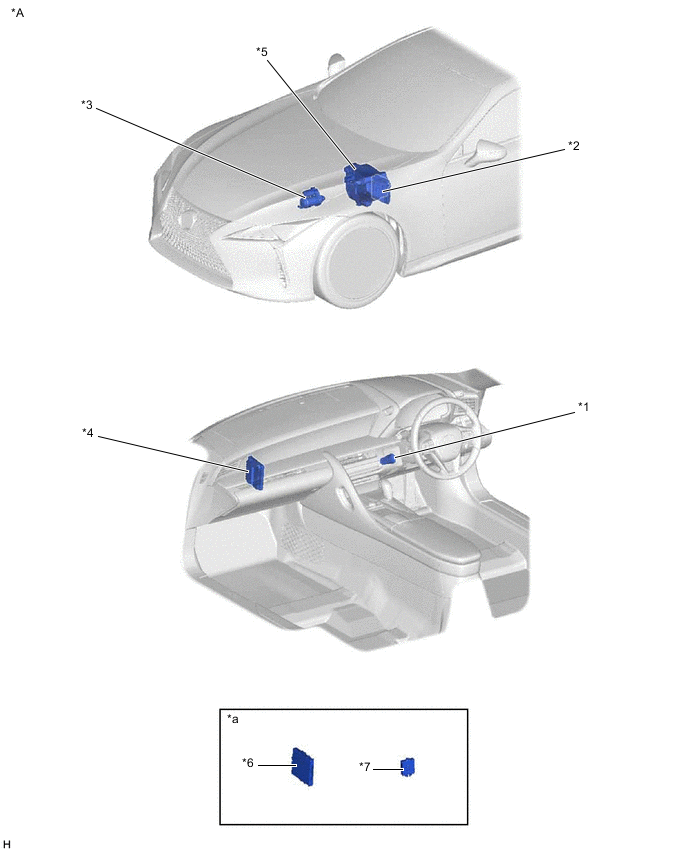

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | ENGINE SWITCH | *2 | ECM |
| *3 | STARTER ASSEMBLY | *4 | SHIFT CONTROL ECU |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK - ST NO. 1 RELAY - ST NO. 1 FUSE |
*6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | ID CODE BOX (IMMOBILISER CODE ECU) | - | - |
| *a | Refer to Service Bulletin for installation position of the parts. | - | - |
