THERMOSTAT COMPONENTS

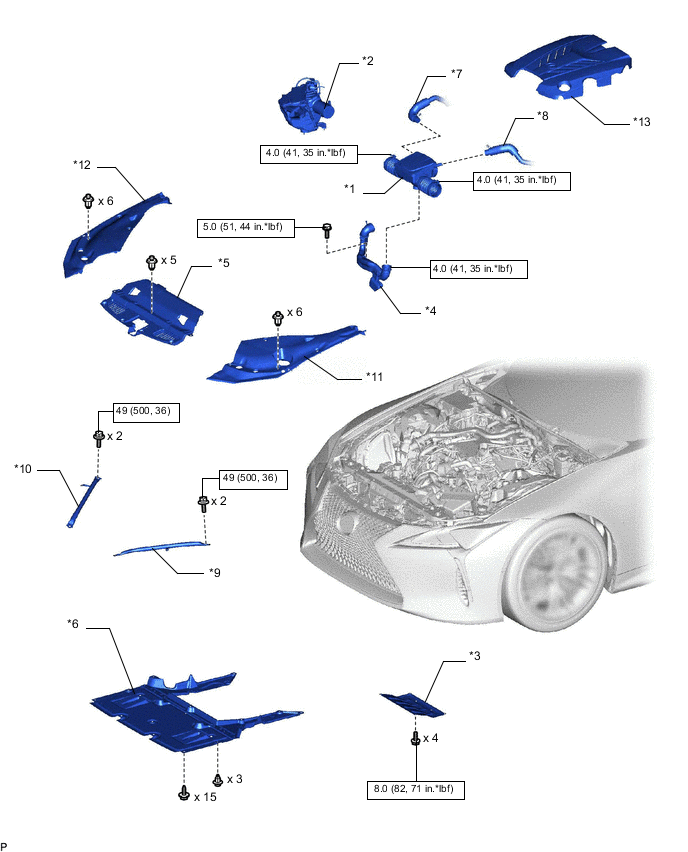

ILLUSTRATION
| *1 | AIR CLEANER HOSE ASSEMBLY | *2 | AIR CLEANER WITH ELEMENT ASSEMBLY RH |
| *3 | ENGINE UNDER COVER REINFORCEMENT | *4 | INTAKE AIR CONNECTOR PIPE |
| *5 | LOWER RADIATOR AIR DEFLECTOR | *6 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *7 | NO. 2 PCV HOSE | *8 | NO. 3 PCV HOSE |
| *9 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH | *10 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH |
| *11 | RADIATOR SUPPORT TO FRAME SEAL LH | *12 | RADIATOR SUPPORT TO FRAME SEAL RH |
| *13 | V-BANK COVER SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

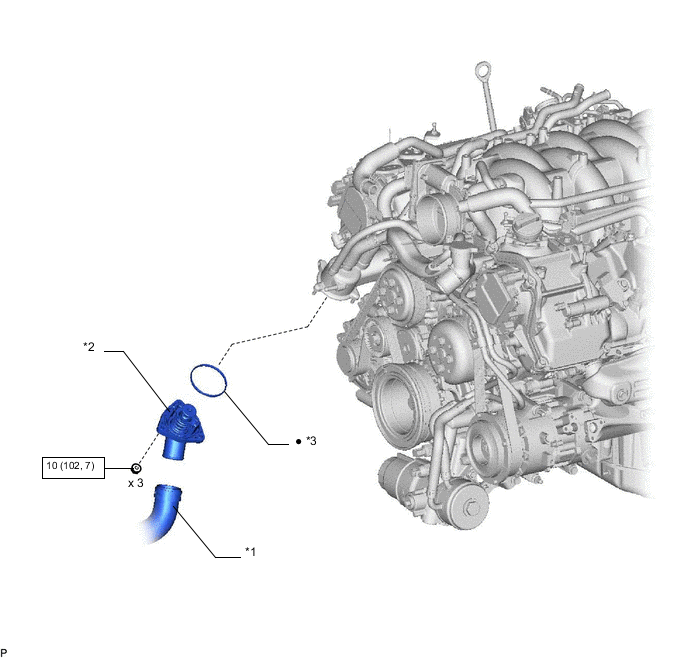

ILLUSTRATION
| *1 | NO. 3 RADIATOR HOSE | *2 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *3 | NO. 2 WATER INLET HOUSING GASKET | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
