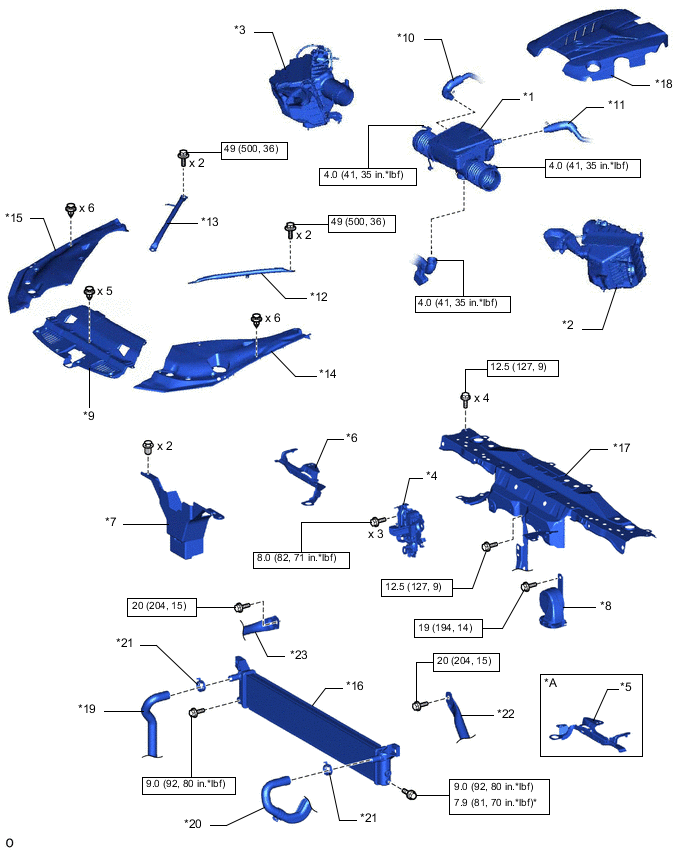

SUB RADIATOR COMPONENTS
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | AIR CLEANER HOSE ASSEMBLY | *2 | AIR CLEANER WITH ELEMENT ASSEMBLY LH |
| *3 | AIR CLEANER WITH ELEMENT ASSEMBLY RH | *4 | HOOD LOCK ASSEMBLY |
| *5 | HOOD LOCK CONTROL CABLE COVER LH | *6 | HOOD LOCK CONTROL CABLE COVER RH |
| *7 | HOOD LOCK RELEASE LEVER PROTECTOR | *8 | LOW PITCHED HORN ASSEMBLY |
| *9 | LOWER RADIATOR AIR DEFLECTOR | *10 | NO. 2 PCV HOSE |
| *11 | NO. 3 PCV HOSE | *12 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH |
| *13 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH | *14 | RADIATOR SUPPORT TO FRAME SEAL LH |
| *15 | RADIATOR SUPPORT TO FRAME SEAL RH | *16 | SUB RADIATOR ASSEMBLY |
| *17 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | *18 | V-BANK COVER SUB-ASSEMBLY |
| *19 | RADIATOR HOSE SUB-ASSEMBLY | *20 | NO. 2 RADIATOR HOSE SUB-ASSEMBLY |
| *21 | CLIP | *22 | LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH |
| *23 | LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with union nut wrench |
