WATER PUMP COMPONENTS

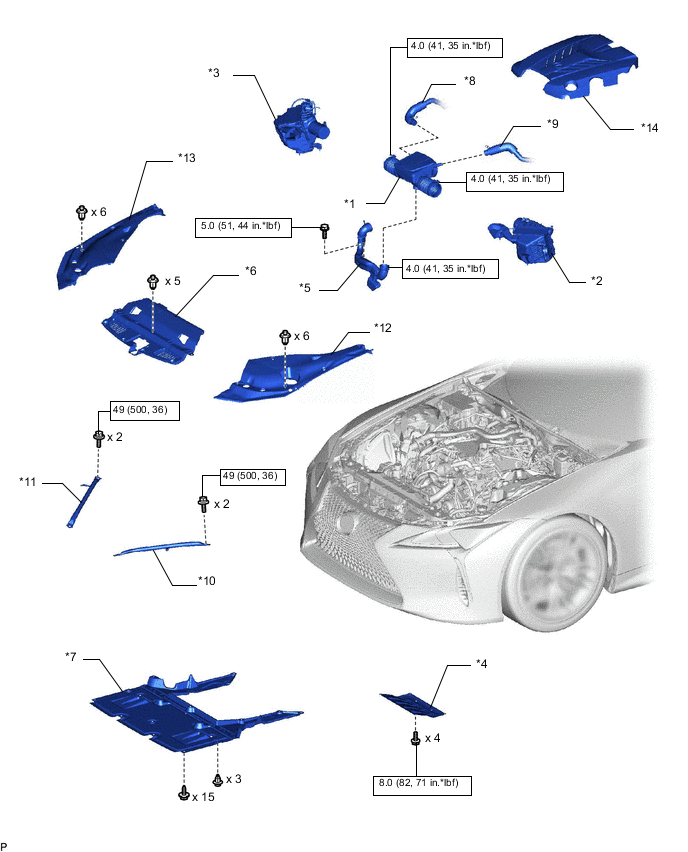

ILLUSTRATION
| *1 | AIR CLEANER HOSE ASSEMBLY | *2 | AIR CLEANER WITH ELEMENT ASSEMBLY LH |
| *3 | AIR CLEANER WITH ELEMENT ASSEMBLY RH | *4 | ENGINE UNDER COVER REINFORCEMENT |
| *5 | INTAKE AIR CONNECTOR PIPE | *6 | LOWER RADIATOR AIR DEFLECTOR |
| *7 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *8 | NO. 2 PCV HOSE |
| *9 | NO. 3 PCV HOSE | *10 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH |
| *11 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH | *12 | RADIATOR SUPPORT TO FRAME SEAL LH |
| *13 | RADIATOR SUPPORT TO FRAME SEAL RH | *14 | V-BANK COVER SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

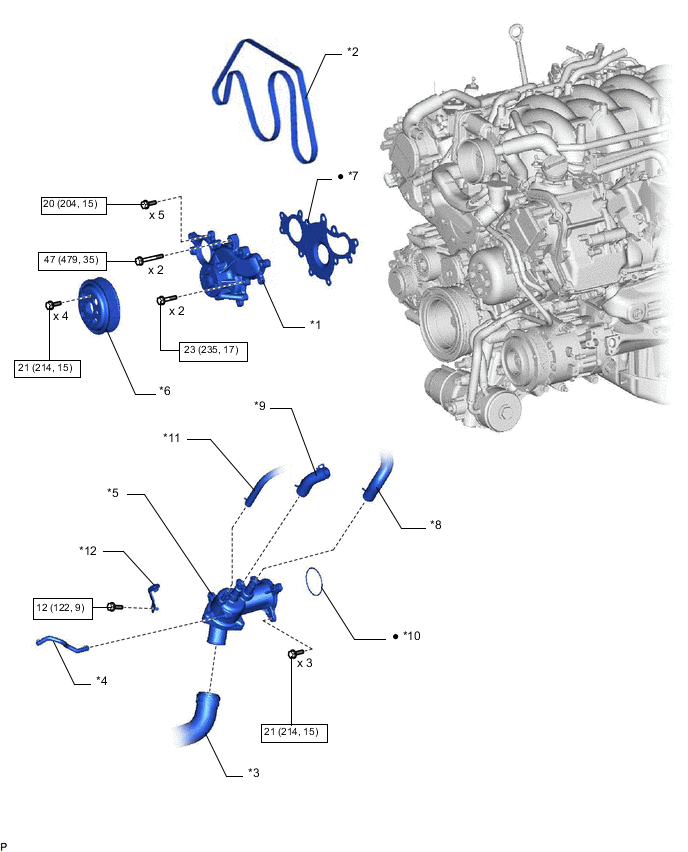

ILLUSTRATION
| *1 | ENGINE WATER PUMP ASSEMBLY | *2 | FAN AND GENERATOR V BELT |
| *3 | NO. 3 RADIATOR HOSE | *4 | RESERVE TANK OUTLET HOSE |
| *5 | WATER INLET HOUSING | *6 | WATER PUMP PULLEY |
| *7 | WATER PUMP GASKET | *8 | NO. 3 WATER BY-PASS HOSE |
| *9 | WATER INLET HOSE | *10 | NO. 1 WATER INLET HOUSING GASKET |
| *11 | NO. 5 WATER BY-PASS HOSE | *12 | WIRE HARNESS CLAMP BRACKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
