COOLING FAN SYSTEM PARTS LOCATION

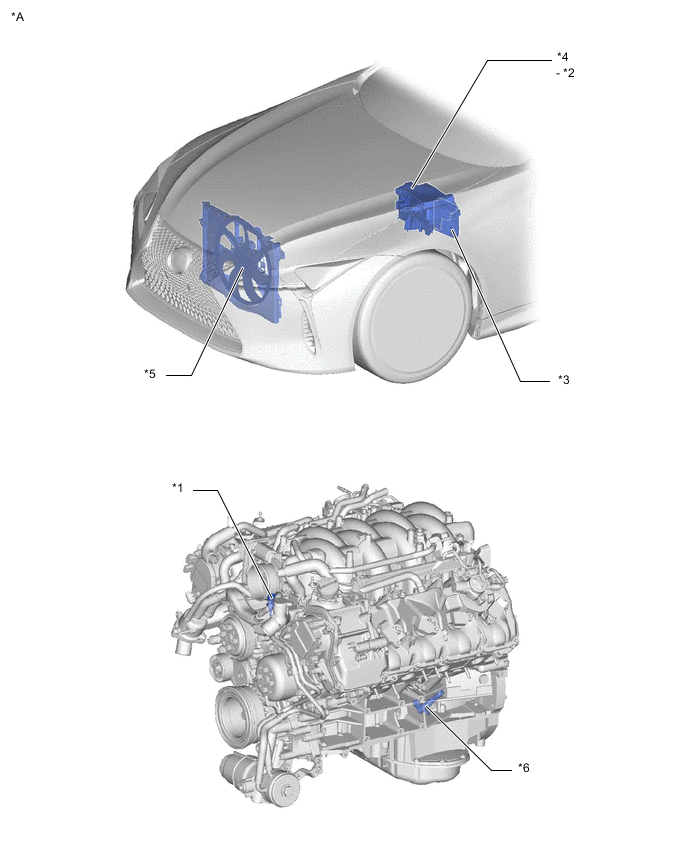

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | ENGINE COOLANT TEMPERATURE SENSOR | *2 | EFI-MAIN NO. 1 RELAY |
| *3 | ECM | *4 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI NO. 1 FUSE - EFI-MAIN NO. 1 FUSE - FAN NO. 1 FUSE |
| *5 | FAN WITH MOTOR ASSEMBLY - COOLING FAN MOTOR |
*6 | CRANKSHAFT POSITION SENSOR |

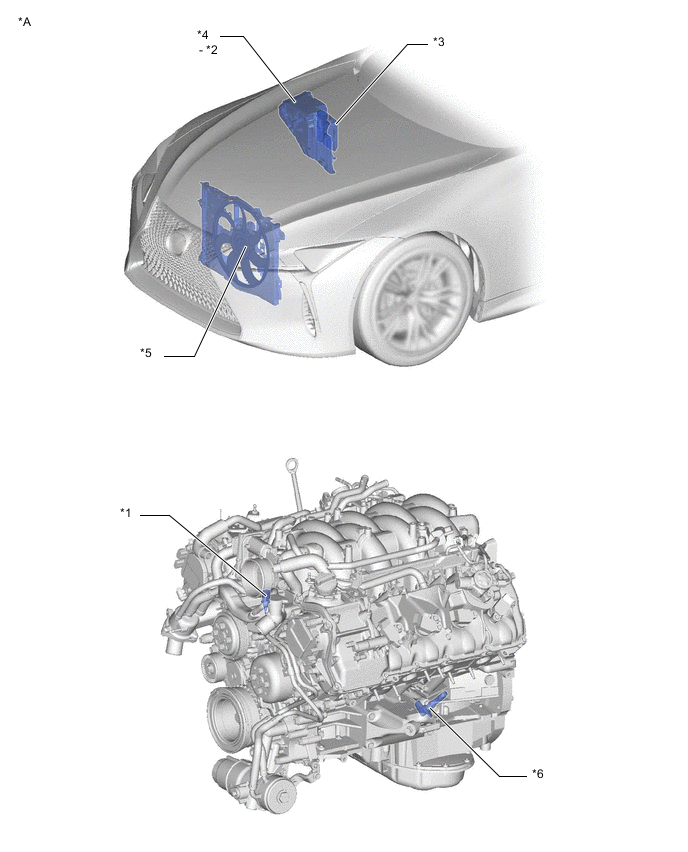

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | ENGINE COOLANT TEMPERATURE SENSOR | *2 | EFI-MAIN NO. 1 RELAY |
| *3 | ECM | *4 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI NO. 1 FUSE - EFI-MAIN NO. 1 FUSE - FAN NO. 1 FUSE |
| *5 | FAN WITH MOTOR ASSEMBLY - COOLING FAN MOTOR |
*6 | CRANKSHAFT POSITION SENSOR |
