EXHAUST CHANGE VALVE DRIVER REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. REMOVE NO. 2 DECK BOARD

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE NO. 1 DECK BOARD

    Click here

  5. REMOVE REAR FLOOR FINISH PLATE

    Click here

  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Click here

  7. REMOVE LUGGAGE COMPARTMENT TRIM BOX

    Click here

  8. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Click here

  9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Click here

  10. REMOVE INNER LUGGAGE COMPARTMENT TRIM COVER LH

    Click here

  11. REMOVE EXHAUST CHANGE VALVE DRIVER

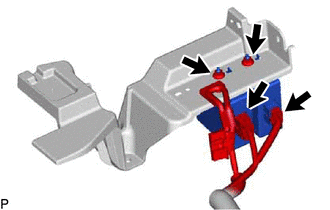

    1. B000WRD

      Disconnect the 2 connectors from 2 exhaust change valve drivers.

    2. Remove the 2 nuts and 2 exhaust change valve drivers from the No. 3 deck board.
