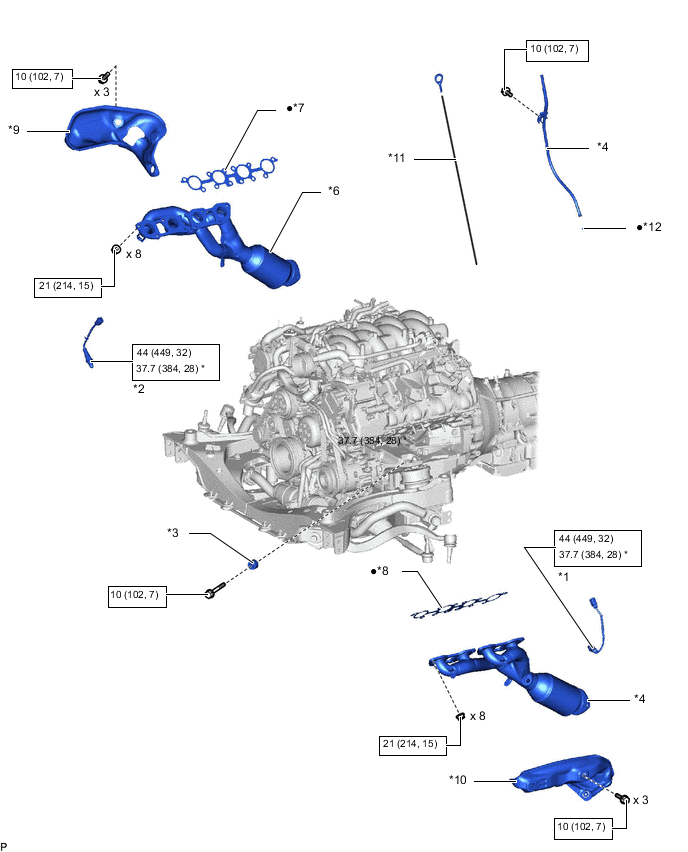

EXHAUST MANIFOLD COMPONENTS
ILLUSTRATION
| *1 | AIR FUEL RATIO SENSOR (for Bank 1) | *2 | AIR FUEL RATIO SENSOR (for Bank 2) |
| *3 | ENGINE MOUNTING DAMPER | *4 | ENGINE OIL LEVEL DIPSTICK GUIDE |
| *5 | EXHAUST MANIFOLD SUB-ASSEMBLY LH | *6 | EXHAUST MANIFOLD SUB-ASSEMBLY RH |
| *7 | EXHAUST MANIFOLD TO HEAD GASKET | *8 | EXHAUST MANIFOLD TO HEAD GASKET LH |
| *9 | NO. 1 EXHAUST MANIFOLD HEAT INSULATOR | *10 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
| *11 | ENGINE OIL LEVEL DIPSTICK | *12 | O-RING |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
| ● | Non-reusable part | - | - |
