EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY INSPECTION

PROCEDURE


  1. INSPECT EXHAUST TAILPIPE ASSEMBLY

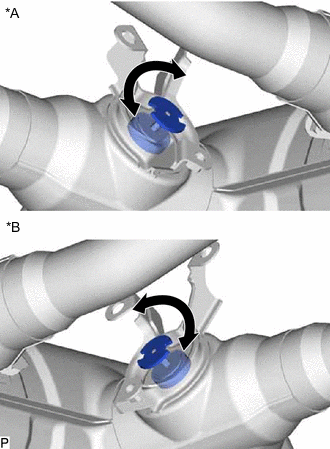

    1. B000WY7C02
      *A for RH Side
      *B for LH Side

      Turn the valve plate of the exhaust tailpipe assembly by hand to check that it turns smoothly.

      Tech Tips

      If the result is not as specified, repalce the exhaust tailpipe assembly.
