PCV VALVE REMOVAL

PROCEDURE

1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

   Click here

2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

   Click here

3. REMOVE PCV VALVE




   1.

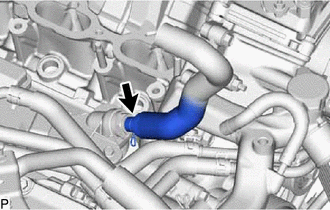

      Slide the clip and disconnect the PCV hose from the PCV valve.

   2. Remove the PCV valve from the case separator.
