PURGE VALVE REMOVAL

PROCEDURE


  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Click here

  2. REMOVE PURGE VSV

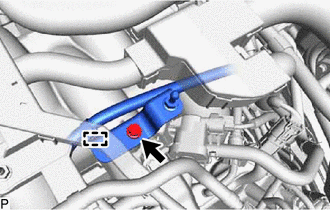

    1. B000YVY

      Detach the clamp and disconnect the wire harness from the wire harness bracket.

    2. Remove the bolt and wire harness bracket from the intake air surge tank assembly.

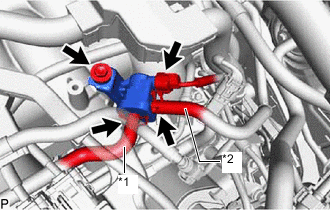

    3. B000UMLC02
      *1 Fuel Vapor Feed Hose
      *2 No. 1 Fuel Vapor Feed Hose

      Slide the clip and disconnect the fuel vapor feed hose from the purge VSV.

    4. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge VSV.

    5. Disconnect the purge VSV connector.

    6. Remove the bolt and purge VSV from the intake air surge tank assembly.
