PURGE VALVE COMPONENTS

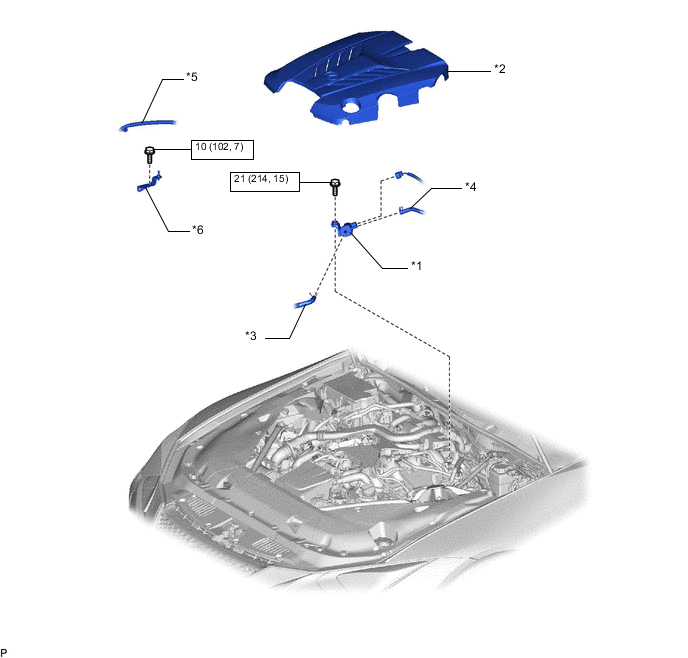

ILLUSTRATION
| *1 | PURGE VSV | *2 | V-BANK COVER SUB-ASSEMBLY |
| *3 | FUEL VAPOR FEED HOSE | *4 | NO. 1 FUEL VAPOR FEED HOSE |
| *5 | WIRE HARNESS | *6 | WIRE HARNESS BRACKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | PURGE VSV | *2 | V-BANK COVER SUB-ASSEMBLY |
| *3 | FUEL VAPOR FEED HOSE | *4 | NO. 1 FUEL VAPOR FEED HOSE |
| *5 | WIRE HARNESS | *6 | WIRE HARNESS BRACKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
