FUEL TANK(w/ Canister Pump Module) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel tank assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Memorize steering angle neutral point LKA/LDA system

Click here

Pre-collision system
Parking assist monitor system

Click here

Steering sensor zero point calibration Variable gear ratio steering system

Click here

CAUTION:


  • B000XRQ

    Never perform work on fuel system components near any possible ignition sources.

  • Vaporized fuel could ignite, resulting in a serious accident.


  • B000XKC

    Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.

  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

PROCEDURE


  1. REMOVE NO. 2 DECK BOARD

    Click here

  2. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Click here

  5. REMOVE NO. 2 FUEL SENDER GAUGE ASSEMBLY

    Click here

  6. DRAIN FUEL

  7. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Click here

  8. REMOVE REAR LOWER SUSPENSION MEMBER STOPPER LH


    1. B000Z85

      Remove the 3 bolts and rear lower suspension member stopper LH.

  9. DISCONNECT FUEL SUCTION TUBE SUB-ASSEMBLY

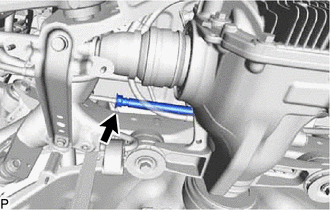

    1. B000U5U

      Disconnect the fuel suction tube sub-assembly.

      Click here

  10. DISCONNECT FUEL TANK VENT HOSE

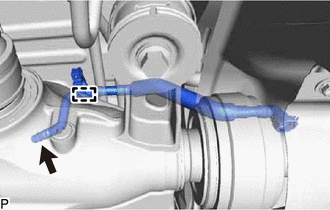

    1. B000Z8K

      Disconnect the fuel tank vent hose.

      Click here

    2. Detach the clamp and disconnect the fuel tank vent hose from the floor.

  11. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY


    1. B000Z2P

      Disconnect the 2 fuel tank main tube sub-assemblies.

      Click here

  12. REMOVE FUEL TANK ASSEMBLY


    1. B000Y05

      Using an engine lifter and attachments, support the fuel tank assembly.

    2. Remove the 4 bolts and 2 fuel tank bands.

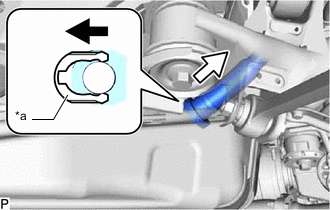

    3. B000YX2C01
      *a Retainer

      Slide the retainer and disconnect the fuel tank to filler pipe hose from the fuel tank assembly.

    4. Using an engine lifter, lower the fuel tank assembly and remove it.

      Note

      Do not allow the fuel tank assembly to contact the vehicle, especially the rear differential carrier assembly.

      Tech Tips

      Lower the engine lifter slowly.

  13. REMOVE FUEL TANK VENT HOSE


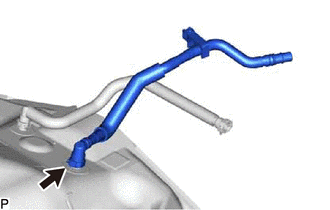

    1. B000UJ0

      Remove the fuel tank vent hose from the fuel tank assembly.

      Click here

  14. REMOVE FUEL SUCTION TUBE SUB-ASSEMBLY

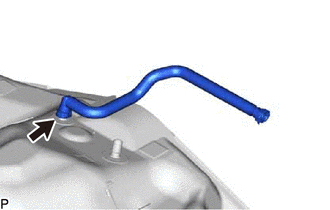

    1. B000TV0

      Remove the fuel suction tube sub-assembly from the fuel tank assembly.

      Click here

  15. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY


    1. B000Y5M

      Detach the 6 clamps and remove the fuel tank main tube sub-assembly from the fuel tank assembly.

  16. REMOVE NO. 3 FUEL TUBE CLAMP


    1. B000UG9

      Remove the No. 3 fuel tube clamp from the fuel tank assembly.

  17. REMOVE NO. 4 FUEL TUBE CLAMP


    1. B000WKS

      Remove the No. 4 fuel tube clamp from the fuel tank assembly.

  18. REMOVE FUEL TUBE GROMMET


    1. B000Y7G

      Remove the fuel tube grommet from the fuel tank assembly.

  19. REMOVE FUEL TUBE CLAMP BRACKET


    1. B000UIP

      Remove the 2 fuel tube clamp brackets from the fuel tank assembly.

  20. REMOVE NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY


    1. B000XQA

      Remove the No. 1 fuel tank protector sub-assembly from the fuel tank assembly.
