FUEL TANK(w/ Canister Pump Module) COMPONENTS
ILLUSTRATION

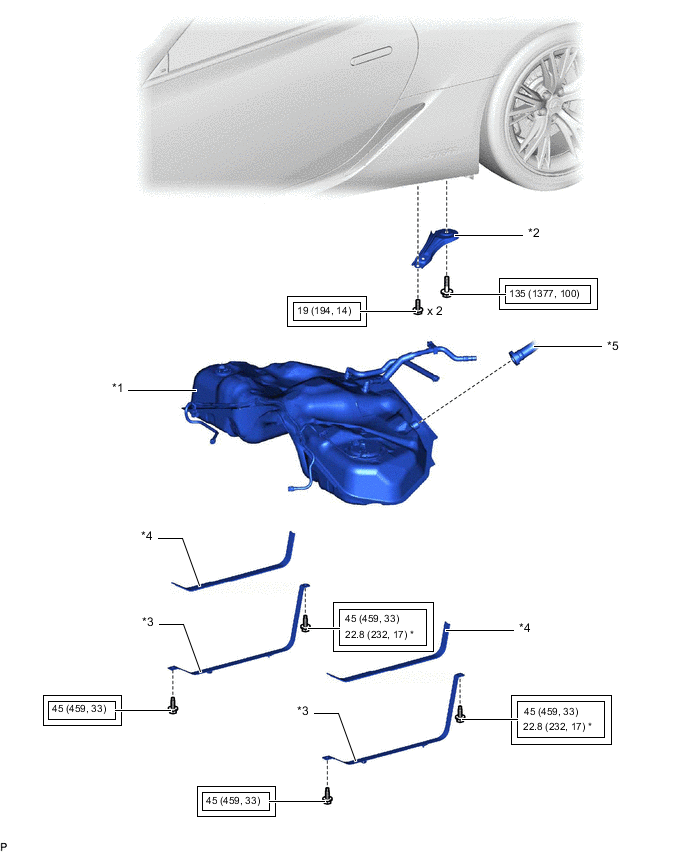

| *1 | FUEL TANK ASSEMBLY | *2 | REAR LOWER SUSPENSION MEMBER STOPPER LH |
| *3 | FUEL TANK BAND | *4 | FUEL TANK BAND SEAT |
| *5 | FUEL TANK TO FILLER PIPE HOSE | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | for use with SST and union nut wrench |
ILLUSTRATION

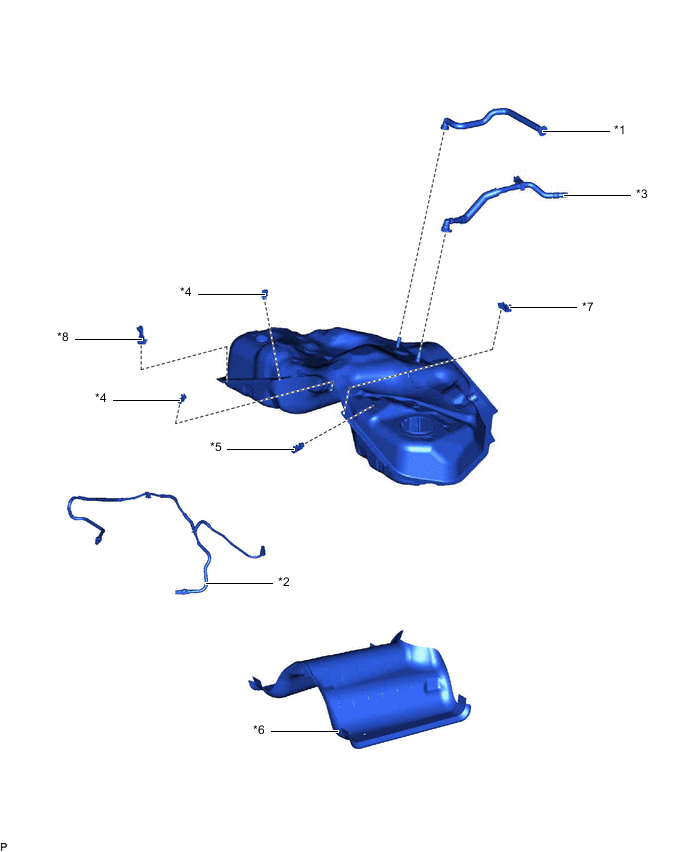

| *1 | FUEL SUCTION TUBE SUB-ASSEMBLY | *2 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 | FUEL TANK VENT HOSE | *4 | FUEL TUBE CLAMP BRACKET |
| *5 | FUEL TUBE GROMMET | *6 | NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY |
| *7 | NO. 3 FUEL TUBE CLAMP | *8 | NO. 4 FUEL TUBE CLAMP |
