FUEL PUMP(for High Pressure) COMPONENTS

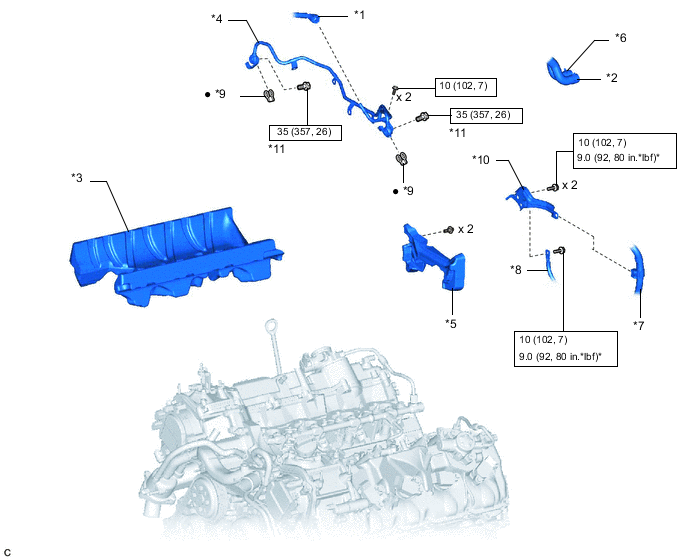

ILLUSTRATION
| *1 | FUEL TUBE SUB-ASSEMBLY | *2 | INLET HEATER WATER HOSE |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *5 | NO. 3 COVER SUB-ASSEMBLY | *6 | OUTLET HEATER WATER HOSE |
| *7 | ENGINE WIRE | *8 | NO. 2 ENGINE WIRE |
| *9 | GASKET | *10 | WIRE HARNESS BRACKET |
| *11 | UNION BOLT | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with a union nut wrench |
| ● | Non-reusable part | - | - |
ILLUSTRATION

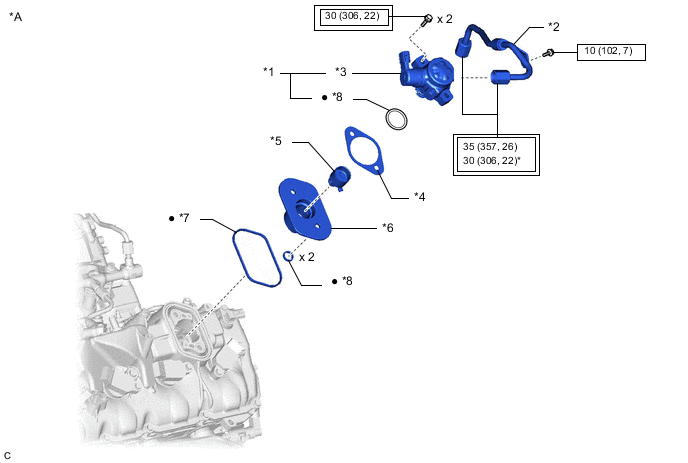

| *A | for Bank 1 | - | - |
| *1 | FUEL PUMP WITH SEAL SUB-ASSEMBLY | *2 | NO. 3 FUEL PIPE SUB-ASSEMBLY |
| *3 | FUEL PUMP SUB-ASSEMBLY | *4 | FUEL PUMP INSULATOR |
| *5 | FUEL PUMP LIFTER ASSEMBLY | *6 | FUEL PUMP LIFTER GUIDE |
| *7 | FUEL PUMP SPACER GASKET | *8 | O-RING |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with a union nut wrench | ● | Non-reusable part |
ILLUSTRATION

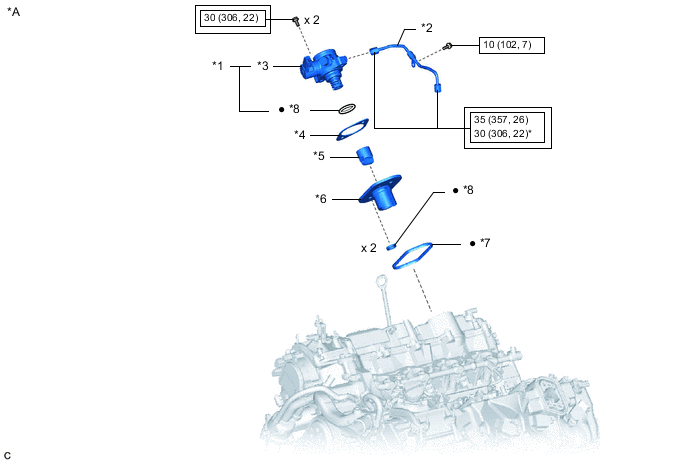

| *A | for Bank 2 | - | - |
| *1 | FUEL PUMP WITH SEAL SUB-ASSEMBLY | *2 | NO. 2 FUEL PIPE SUB-ASSEMBLY |
| *3 | FUEL PUMP SUB-ASSEMBLY | *4 | FUEL PUMP INSULATOR |
| *5 | FUEL PUMP LIFTER ASSEMBLY | *6 | FUEL PUMP LIFTER GUIDE |
| *7 | FUEL PUMP SPACER GASKET | *8 | O-RING |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with a union nut wrench | ● | Non-reusable part |
