INJECTOR DRIVER COMPONENTS

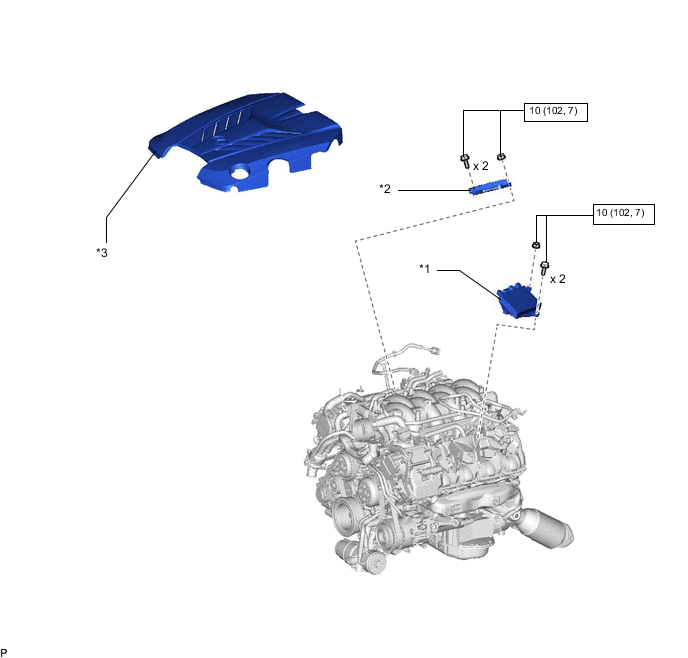

ILLUSTRATION
| *1 | NO. 1 INJECTOR DRIVER | *2 | NO. 2 INJECTOR DRIVER |
| *3 | V-BANK COVER SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | NO. 1 INJECTOR DRIVER | *2 | NO. 2 INJECTOR DRIVER |
| *3 | V-BANK COVER SUB-ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
