FUEL PRESSURE REGULATOR COMPONENTS

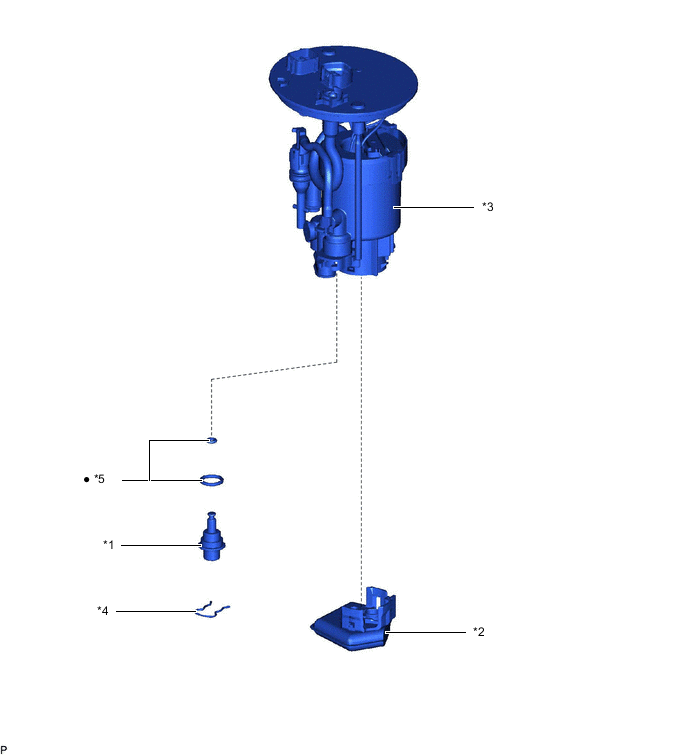

ILLUSTRATION
| *1 | FUEL PRESSURE REGULATOR ASSEMBLY | *2 | FUEL PUMP FILTER |
| *3 | FUEL SUCTION PLATE SUB-ASSEMBLY (FUEL FILTER) | *4 | CLIP |
| *5 | O-RING | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | FUEL PRESSURE REGULATOR ASSEMBLY | *2 | FUEL PUMP FILTER |
| *3 | FUEL SUCTION PLATE SUB-ASSEMBLY (FUEL FILTER) | *4 | CLIP |
| *5 | O-RING | - | - |
| ● | Non-reusable part | - | - |
