CYLINDER HEAD COMPONENTS

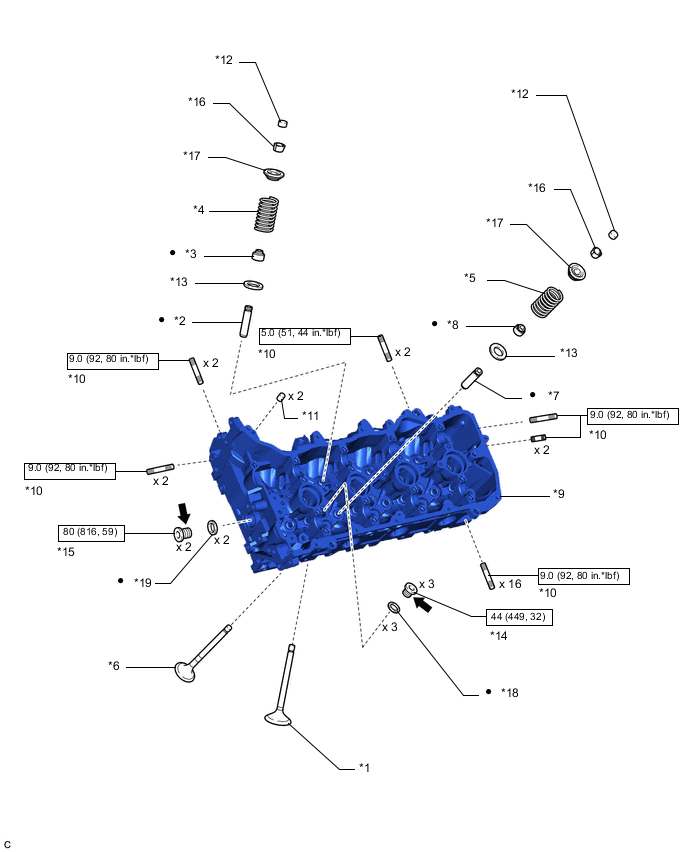

ILLUSTRATION
| *1 | LH CYLINDER HEAD INTAKE VALVE | *2 | NO. 2 INTAKE VALVE GUIDE BUSH |
| *3 | LH CYLINDER HEAD INTAKE VALVE STEM OIL SEAL | *4 | LH CYLINDER HEAD INTAKE VALVE COMPRESSION SPRING |
| *5 | LH CYLINDER HEAD EXHAUST VALVE COMPRESSION SPRING | *6 | LH CYLINDER HEAD EXHAUST VALVE |
| *7 | NO. 2 EXHAUST VALVE GUIDE BUSH | *8 | LH CYLINDER HEAD EXHAUST VALVE STEM OIL SEAL |
| *9 | CYLINDER HEAD | *10 | STUD BOLT |
| *11 | STRAIGHT PIN | *12 | VALVE ADJUSTING SHIM |
| *13 | LH CYLINDER HEAD VALVE SPRING SEAT | *14 | NO. 1 STRAIGHT SCREW PLUG |
| *15 | NO. 2 STRAIGHT SCREW PLUG | *16 | LH CYLINDER HEAD VALVE SPRING RETAINER LOCK |
| *17 | LH CYLINDER HEAD VALVE SPRING RETAINER | *18 | NO. 2 WATER HOLE GASKET |
| *19 | NO. 2 CYLINDER HEAD SCREW PLUG GASKET | - | - |
 |
N*m (kgf*cm, ft*lbf): Specified torque | ● | Non-reusable part |
 |
Adhesive 1324 | - | - |
