FUEL SYSTEM PARTS LOCATION

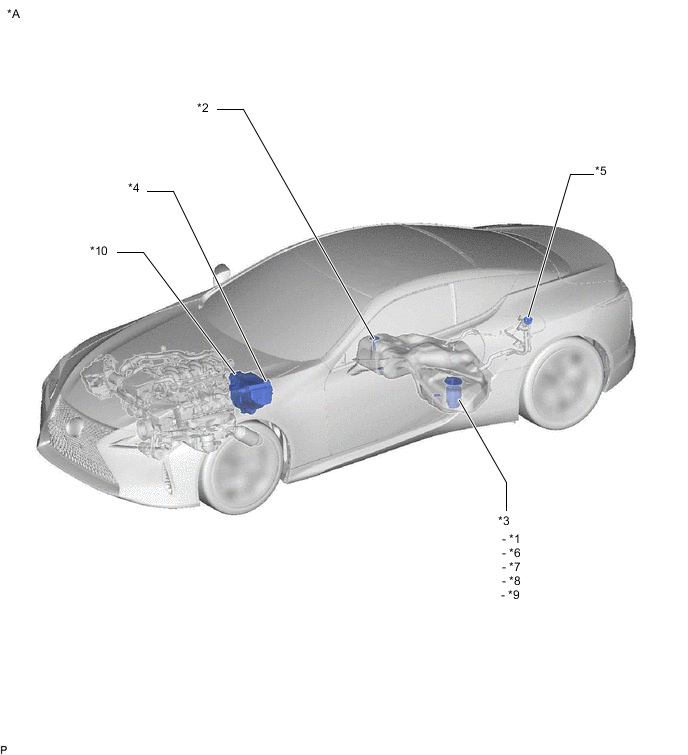

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE | *2 | NO. 2 FUEL SENDER GAUGE ASSEMBLY |
| *3 | FUEL SENDER GAUGE ASSEMBLY | *4 | ECM |
| *5 | FUEL TANK CAP ASSEMBLY | *6 | FUEL PUMP ASSEMBLY |
| *7 | FUEL FILTER | *8 | FUEL MAIN VALVE |
| *9 | FUEL PRESSURE REGULATOR | *10 | NO. 1 ENGINE ROOM RELAY BLOCK - EFI-MAIN NO. 1 RELAY - EDU NO. 1 RELAY - EDU NO. 2 RELAY - EFI-MAIN NO. 1 FUSE - D INJ NO. 1 FUSE - D INJ NO. 2 FUSE - EDU NO. 1 FUSE - EDU NO. 2 FUSE - EFI NO. 1 FUSE - INJ FUSE |

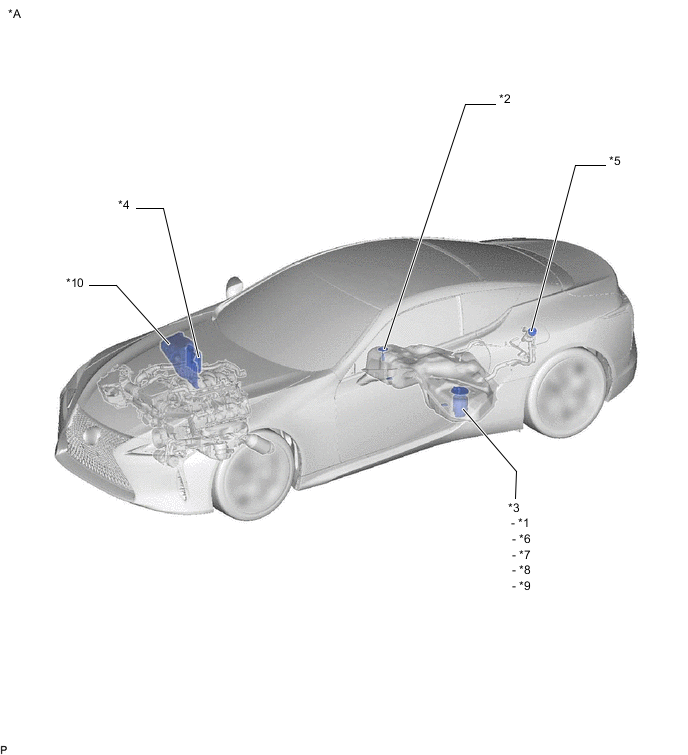

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE | *2 | NO. 2 FUEL SENDER GAUGE ASSEMBLY |
| *3 | FUEL SENDER GAUGE ASSEMBLY | *4 | ECM |
| *5 | FUEL TANK CAP ASSEMBLY | *6 | FUEL PUMP ASSEMBLY |
| *7 | FUEL FILTER | *8 | FUEL MAIN VALVE |
| *9 | FUEL PRESSURE REGULATOR | *10 | NO. 1 ENGINE ROOM RELAY BLOCK - NO. 1 EFI-MAIN RELAY - EDU NO. 1 RELAY - EDU NO. 2 RELAY - EFI-MAIN NO. 1 FUSE - D INJ NO. 1 FUSE - D INJ NO. 2 FUSE - EDU NO. 1 FUSE - EDU NO. 2 FUSE - EFI NO. 1 FUSE - INJ FUSE |

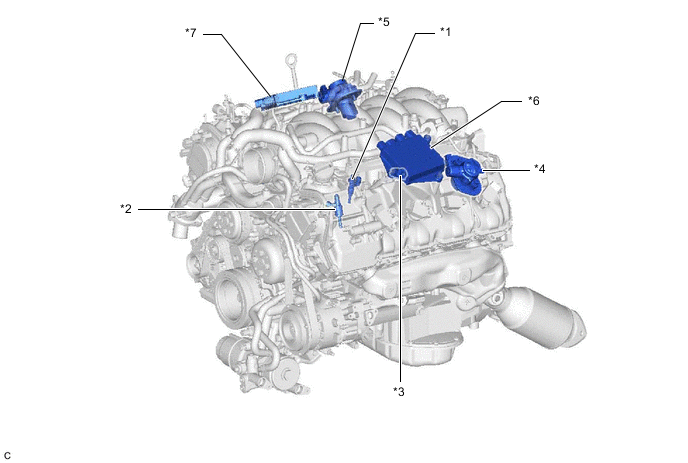

ILLUSTRATION
| *1 | PORT FUEL INJECTOR ASSEMBLY | *2 | DIRECT FUEL INJECTOR ASSEMBLY |
| *3 | FUEL PRESSURE SENSOR | *4 | FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 1) |
| *5 | FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 2) | *6 | NO. 1 INJECTOR DRIVER |
| *7 | NO. 2 INJECTOR DRIVER | - | - |

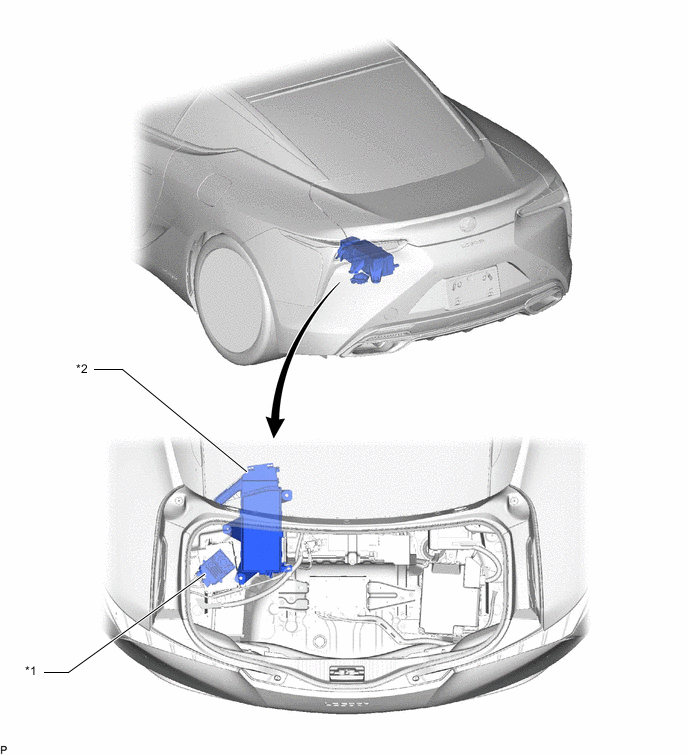

ILLUSTRATION
| *1 | FUEL PUMP CONTROL ECU | *2 | NO. 2 LUGGAGE ROOM RELAY BLOCK - EFI-MAIN NO. 2 RELAY - EFI-MAIN NO. 2 FUSE |
